RN-CSA Al Carport Mounting System
- Waterproof Solution
- Pre-assembled design save on-site installation time
- Custom Desgin

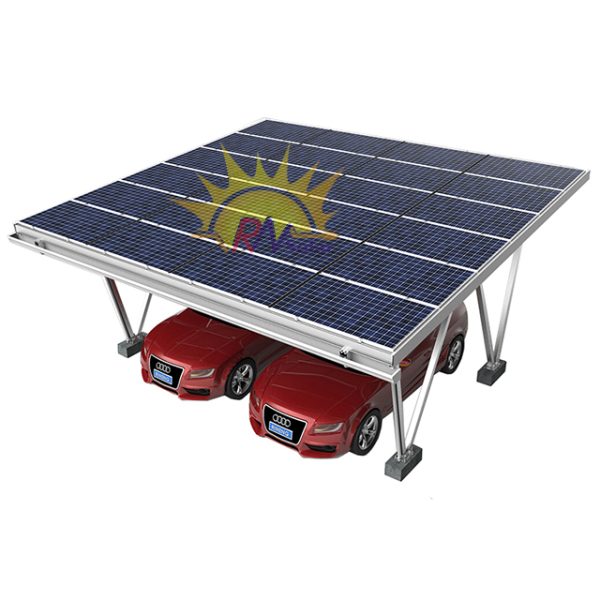

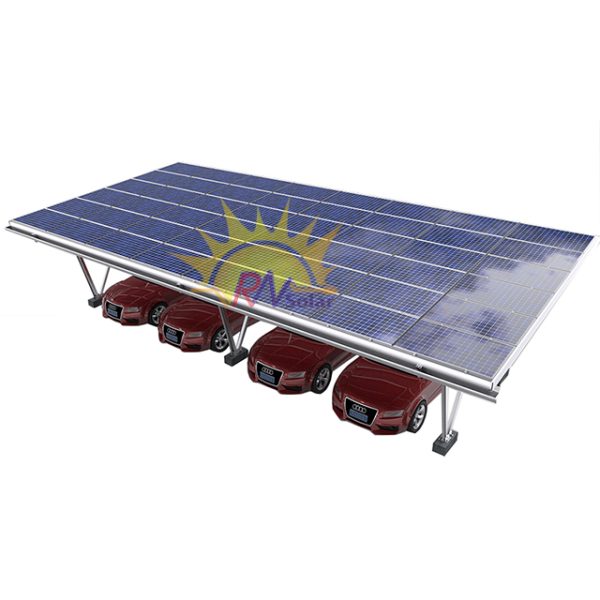

RN-CSA Al Carport Mounting System
RN-CSA Al Solar Carport Mounting System is pre-assembled ground solar mounting system . The system can be customized design for various PV modules and will be customized to specific solar carport projects. The waterproof design protect cars from rain and snow.
◊ Technical Parameter
| Installation site | Ground | Material | Al6005-T5 (anodized) & SUS304 |
| Tilt Angle | 5-15° | Max Wind Force | ≦60m/s |
| Ground Clearance | 2500 mm | Snow Load | ≦1.5KN/m2 |
| Module Orientation | Portrait | Foundation | Concrete |
| Landscape | Ground Screw | ||
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 | Warranty | 10 Years |
◊ Component

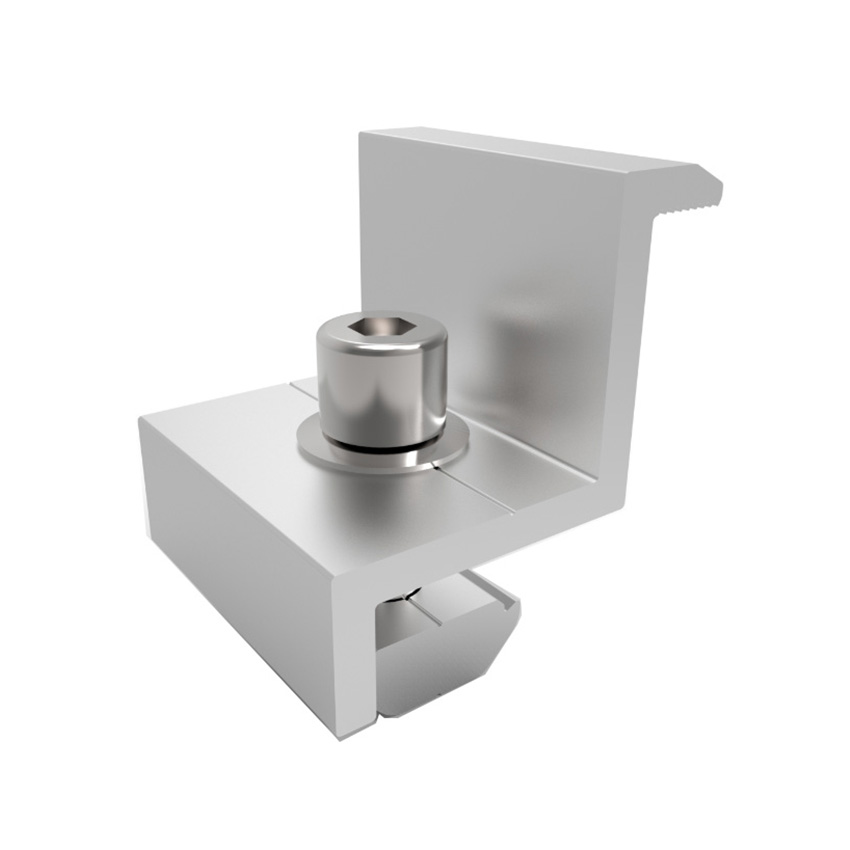

End Clamp

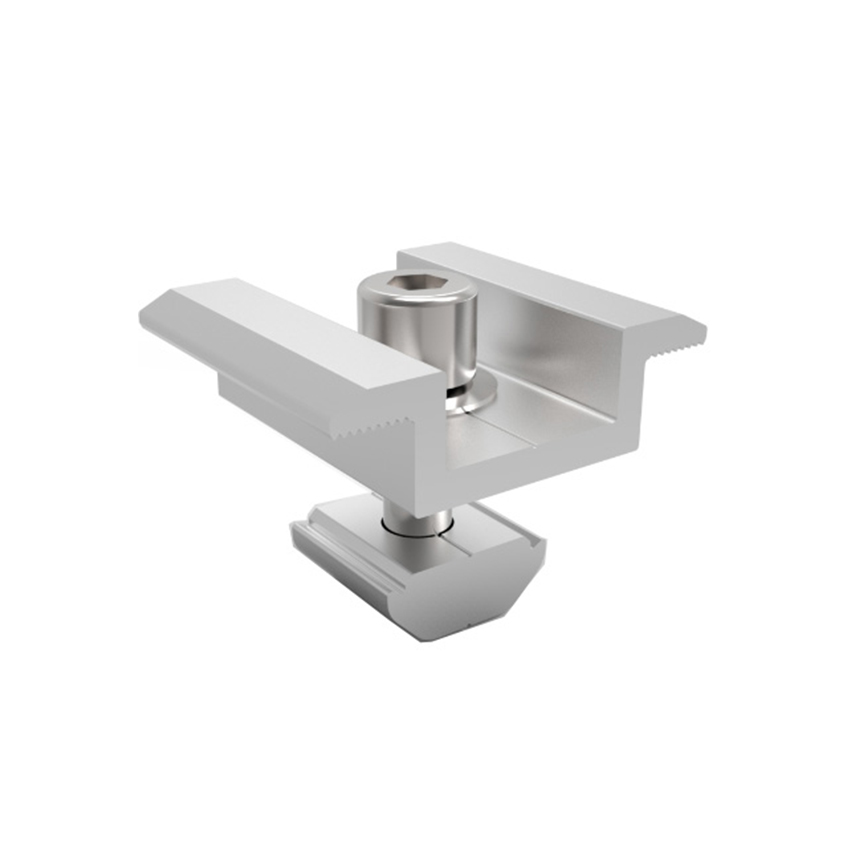

Mid Clamp

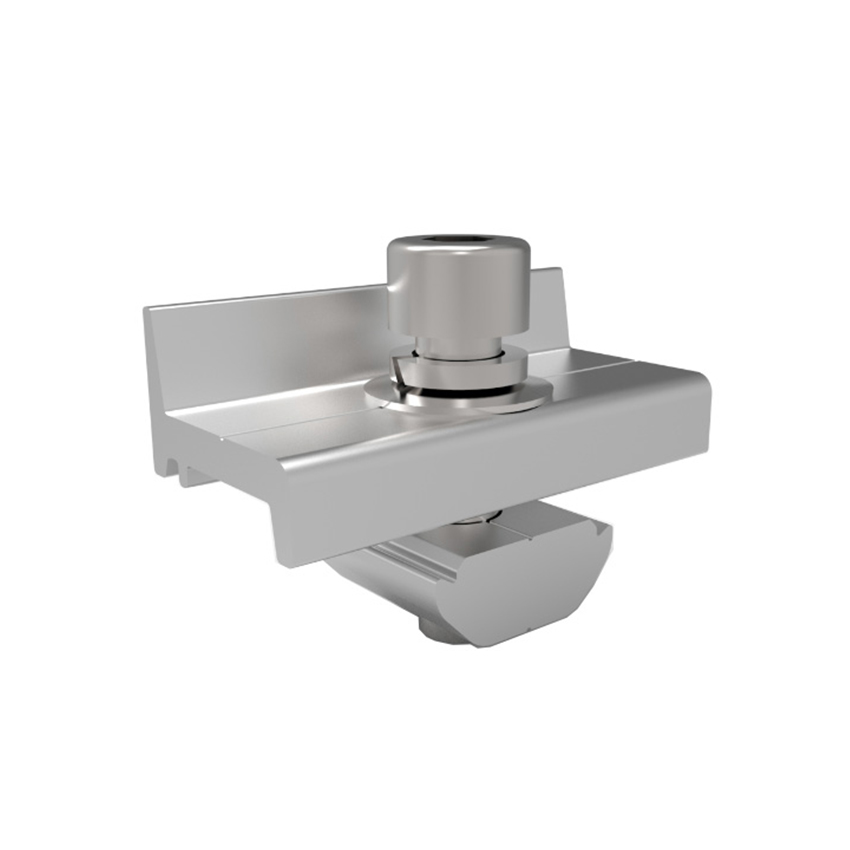

Rail Clamp

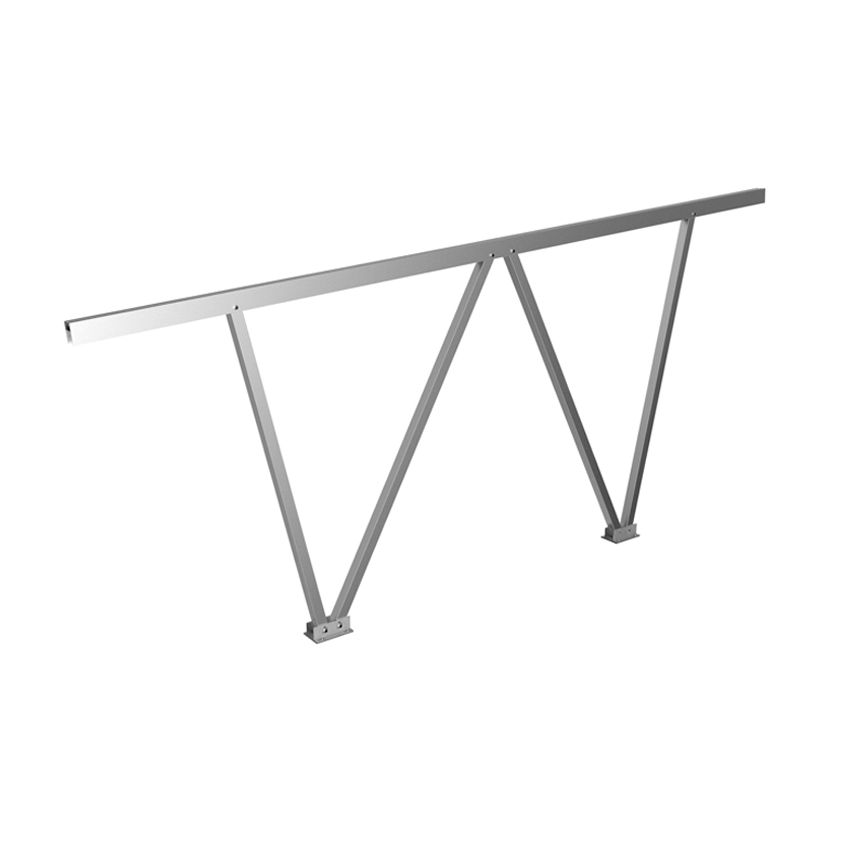

Pre-assembled bracket

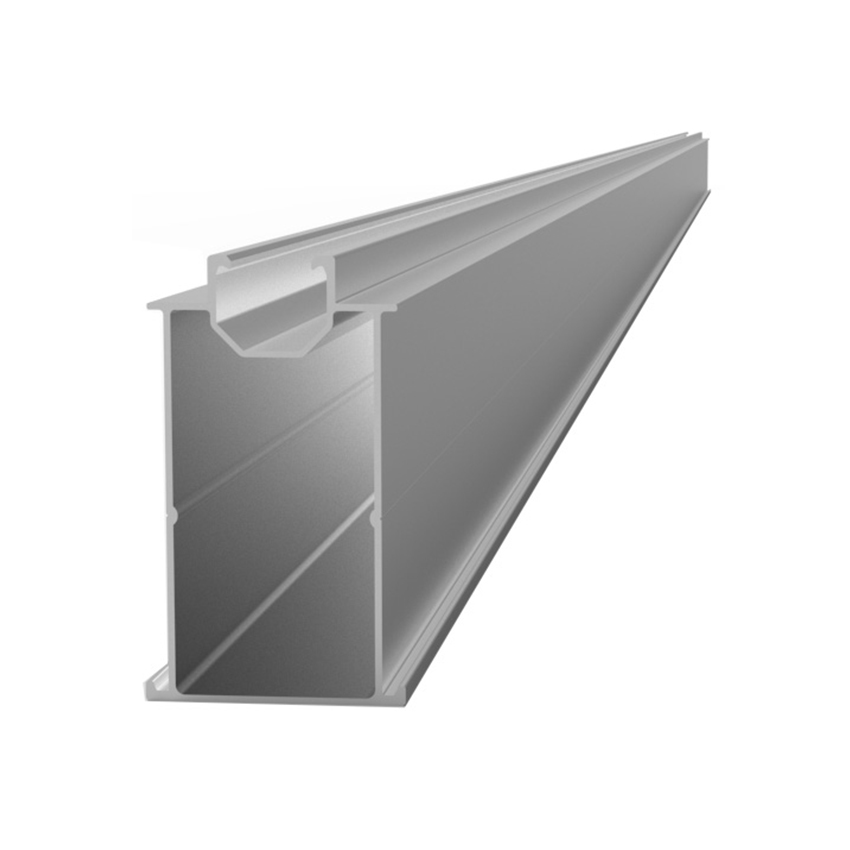

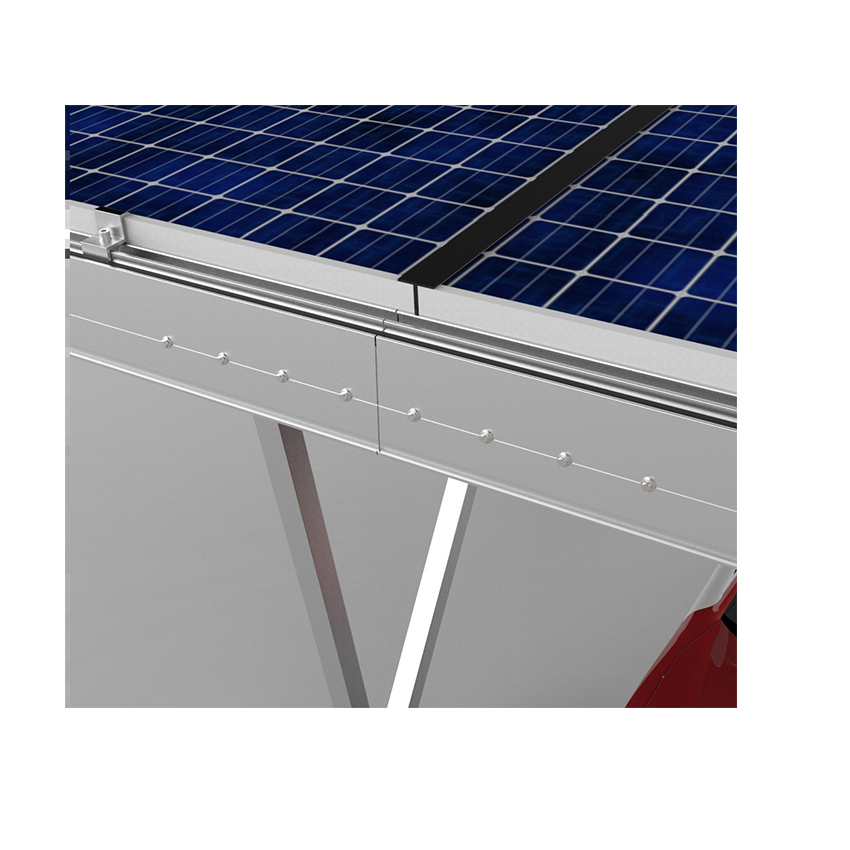

Beam

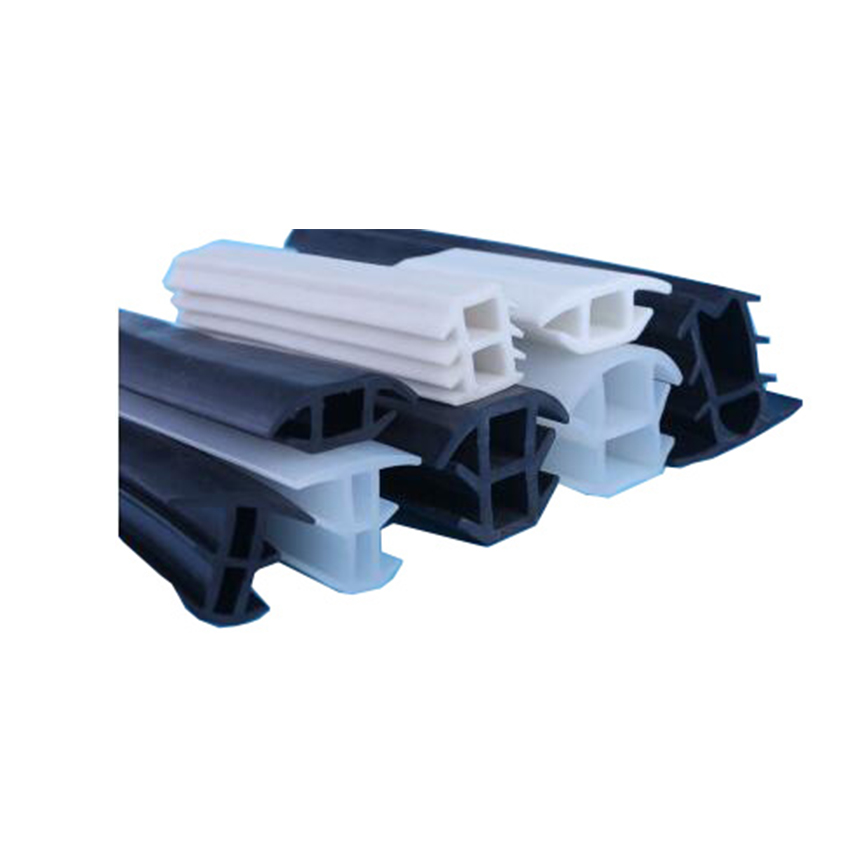

Waterproof Strip

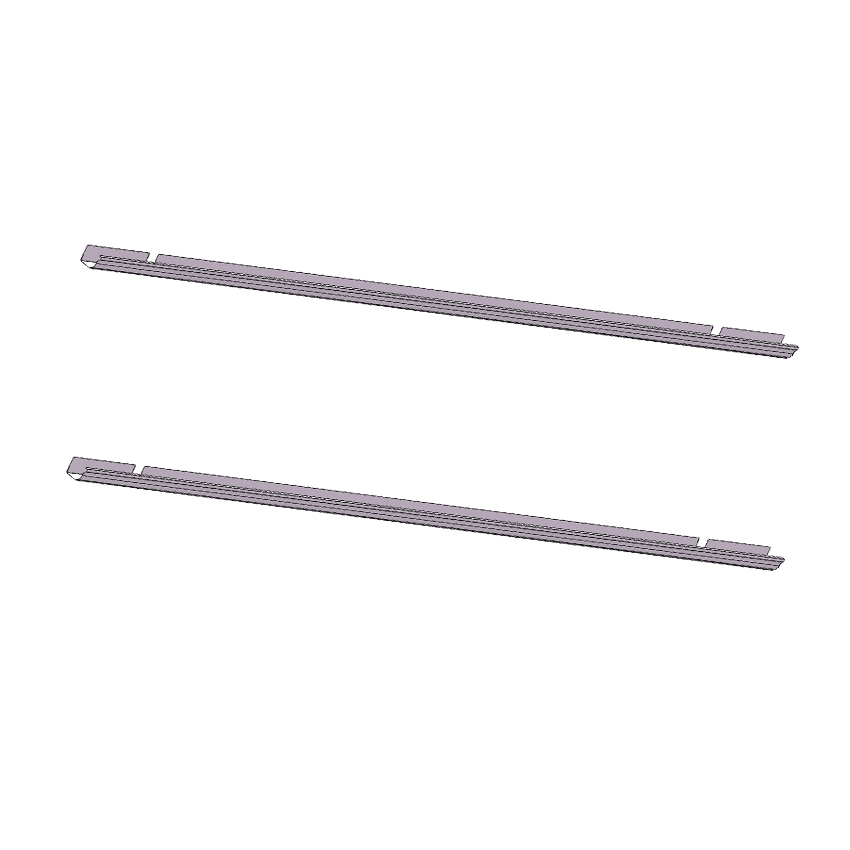

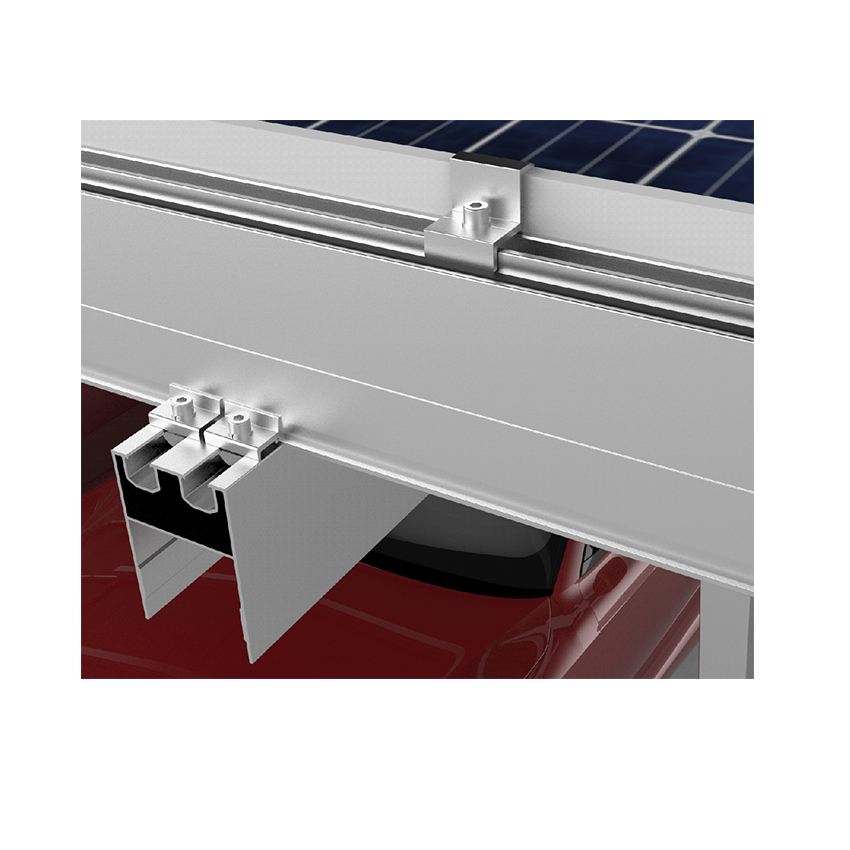

Drainage system
◊ Installation

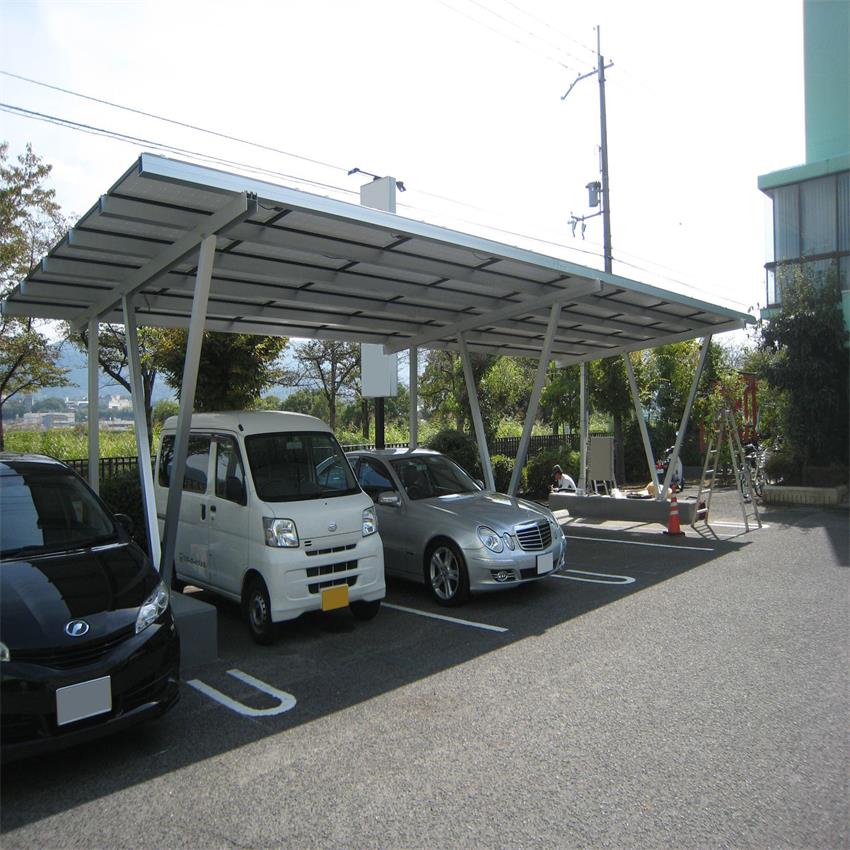

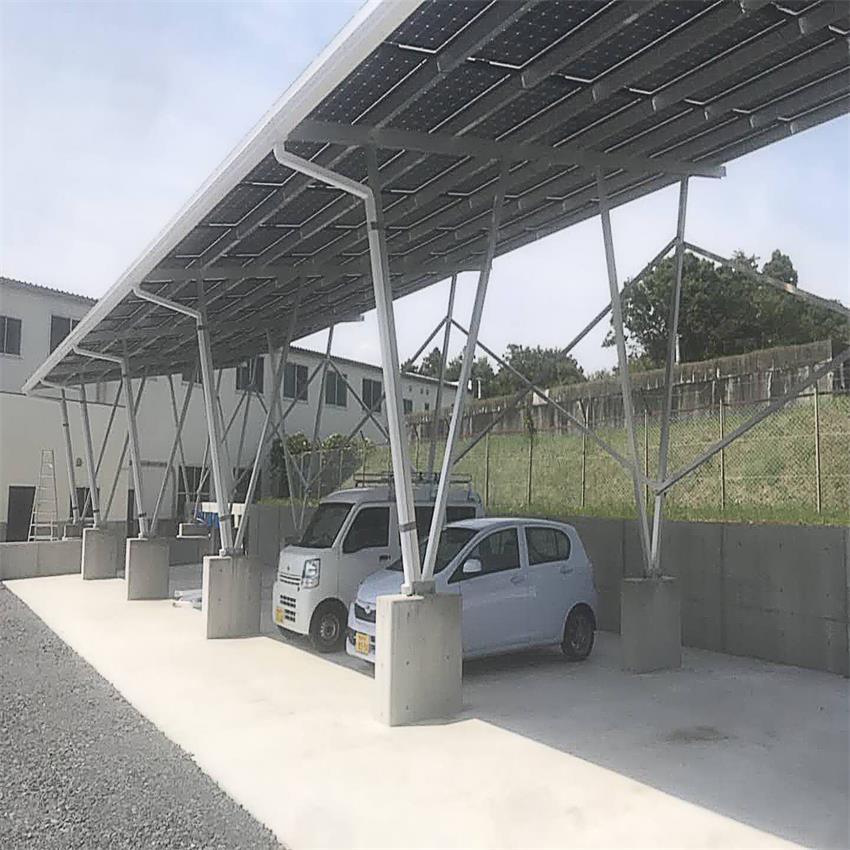

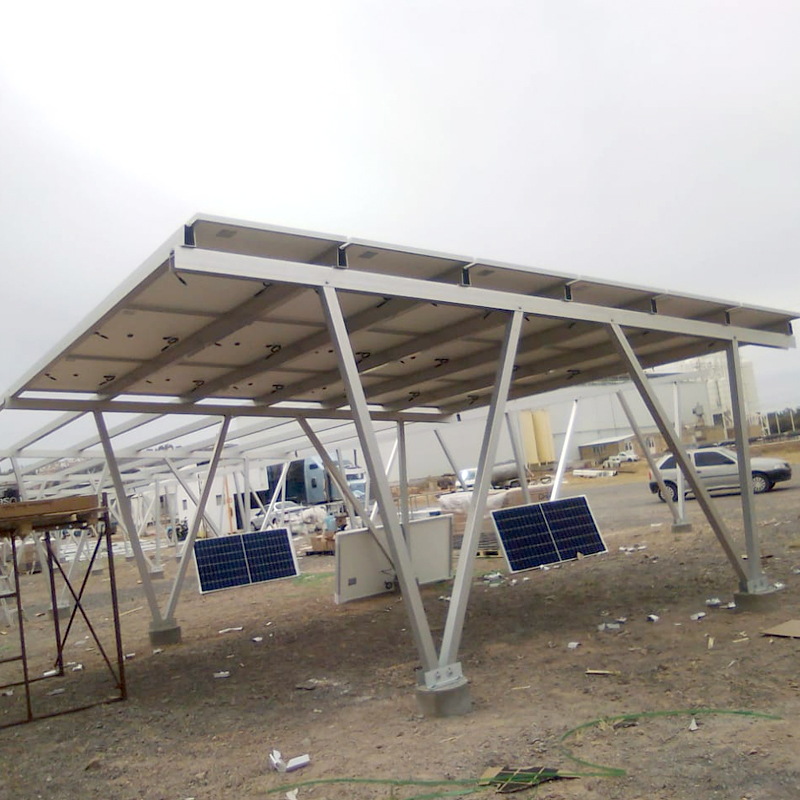

◊ Project Case
