RN-8B Matrix Ballast Mounting System
- Easy Installation
- Unique matrix design with ballast concrete
- Reliability and Safety

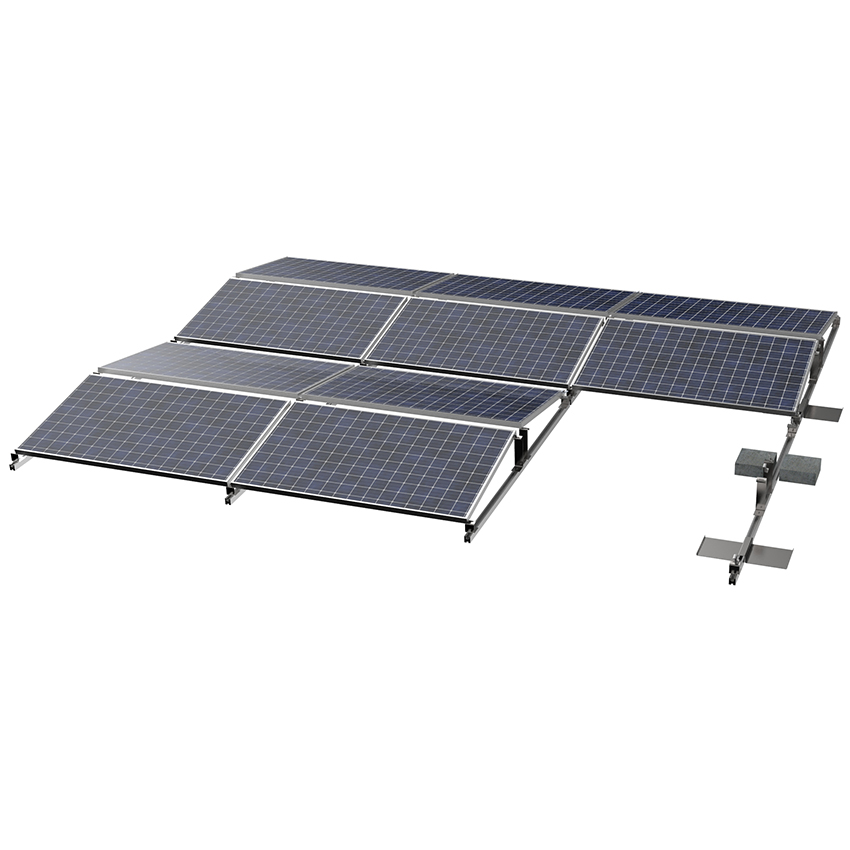

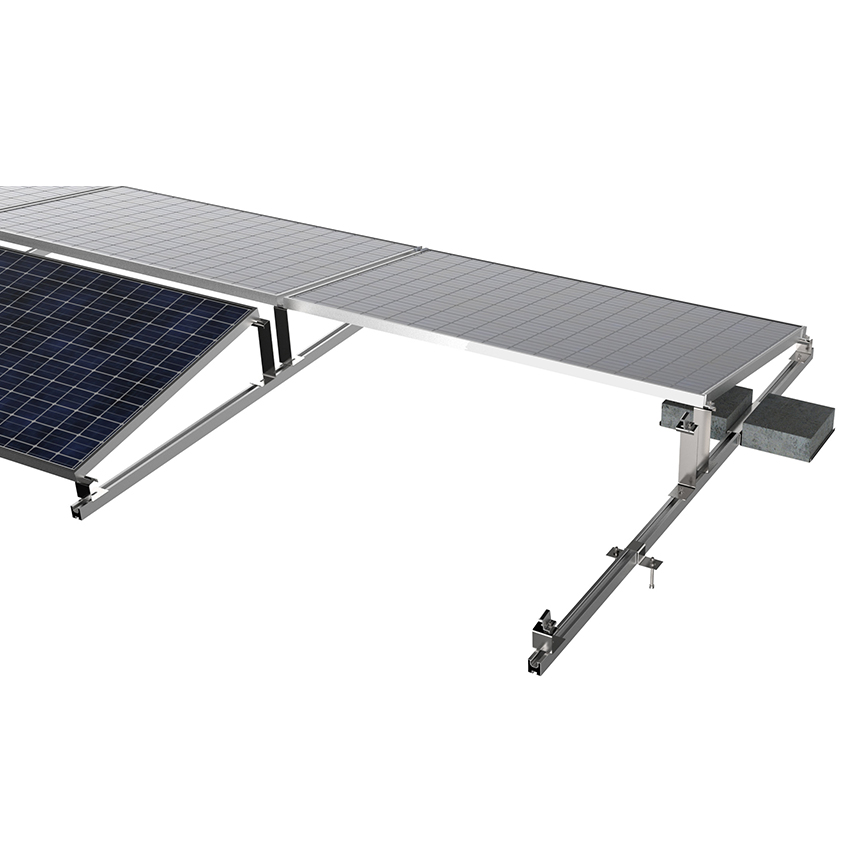

RN-8B Matrix Ballast Mounting System
RN-8A Matrix Ballast Mounting System is a simply,easy-to -install structure without any penetration for flat roof projects in tropical areas.
◊ Technical Parameter
| Installation site | Flat Roof | Material | SUS304 |
| Tilt Angle | 5,10° | Wind Load | ≦40m/s |
| Foundation | Ballast Concrete | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Landscape | Warranty | 10 Years |
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component

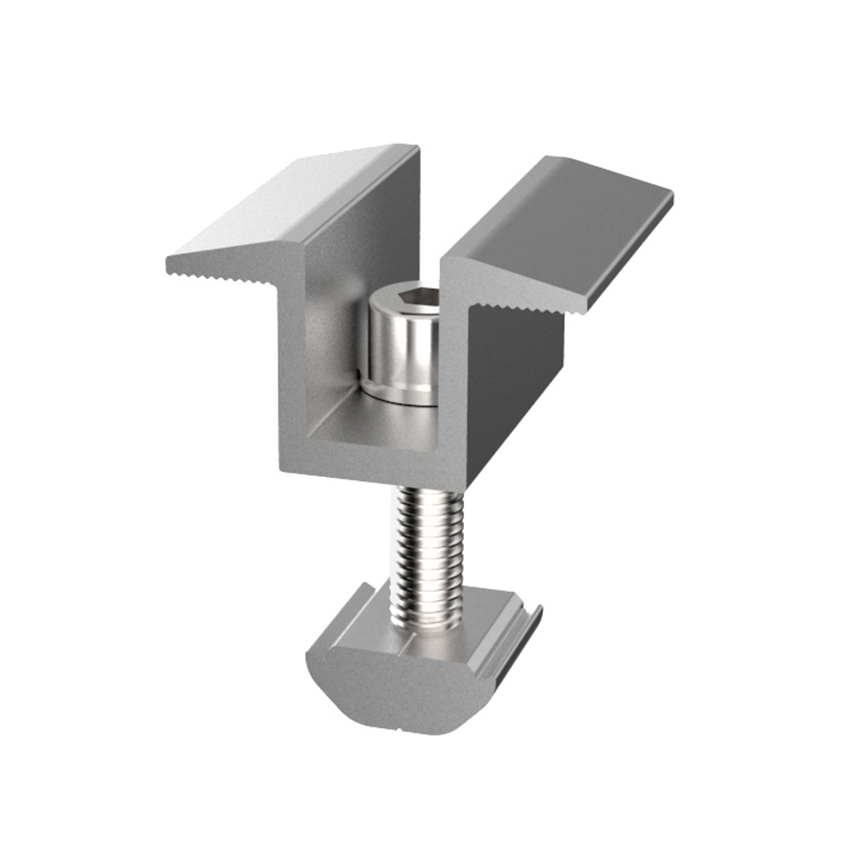

Mid Clamp

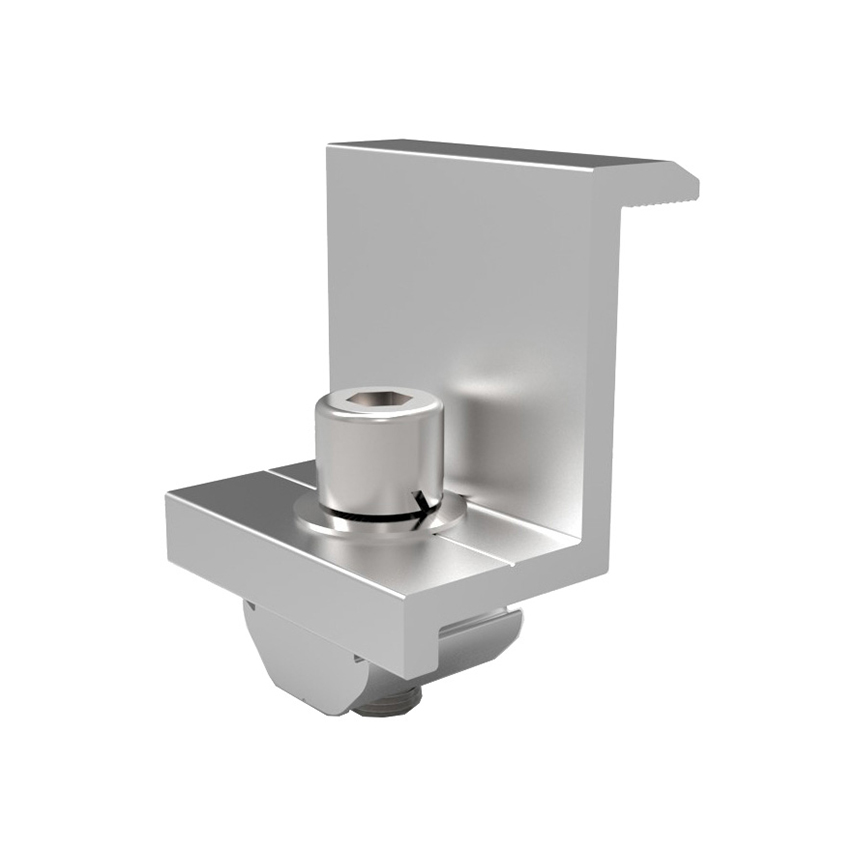

End Clamp

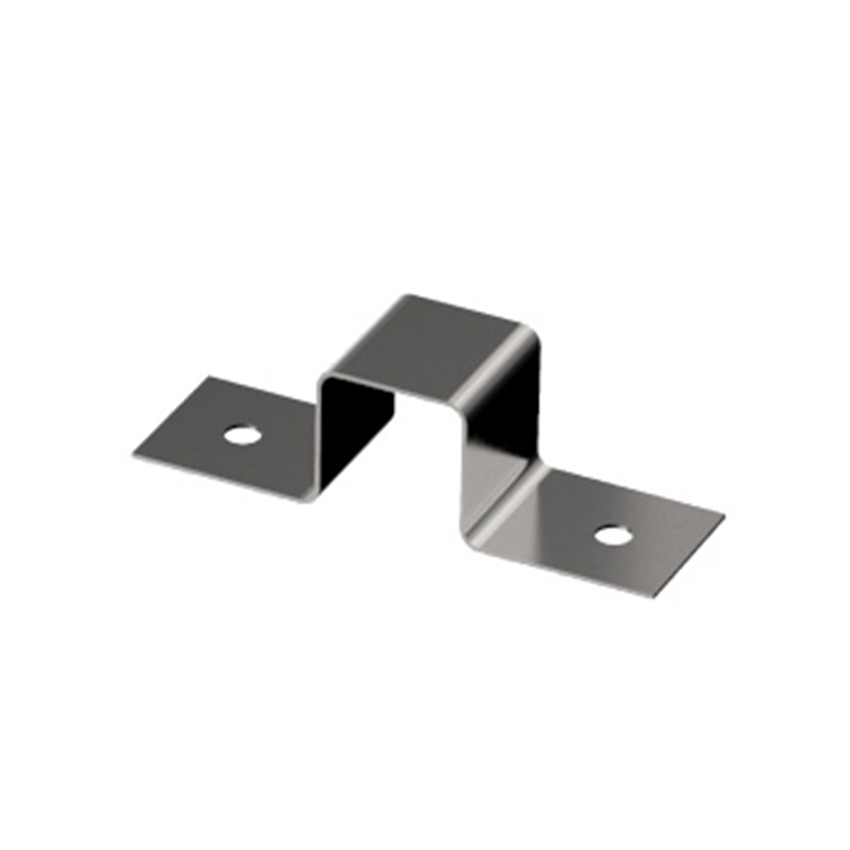

Retaining Plate

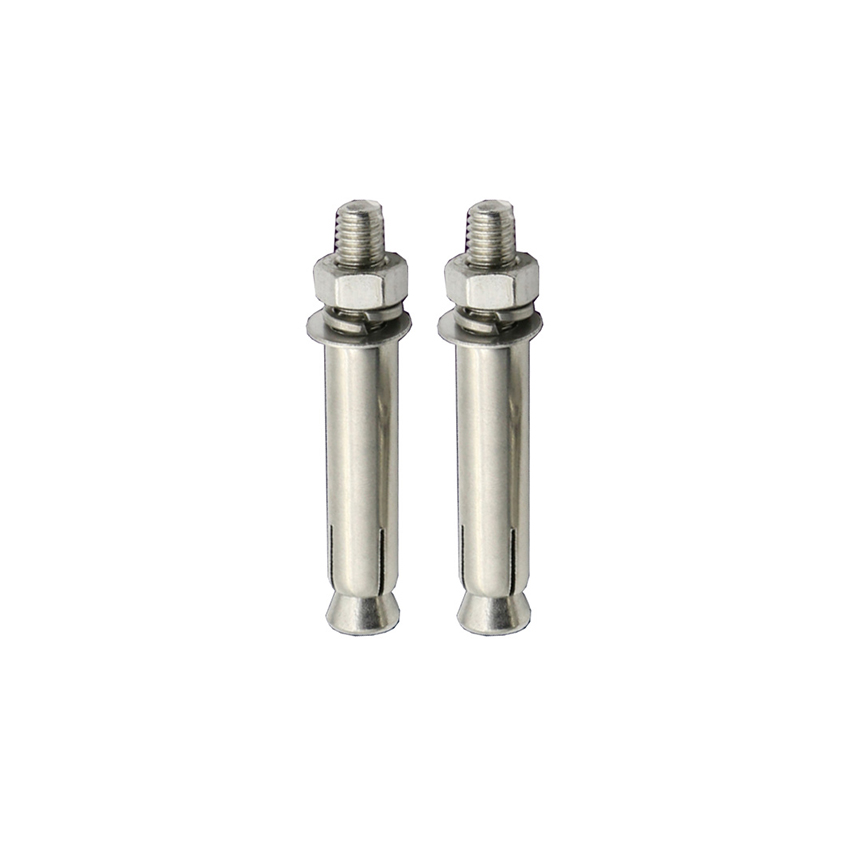

Anchor Bolt

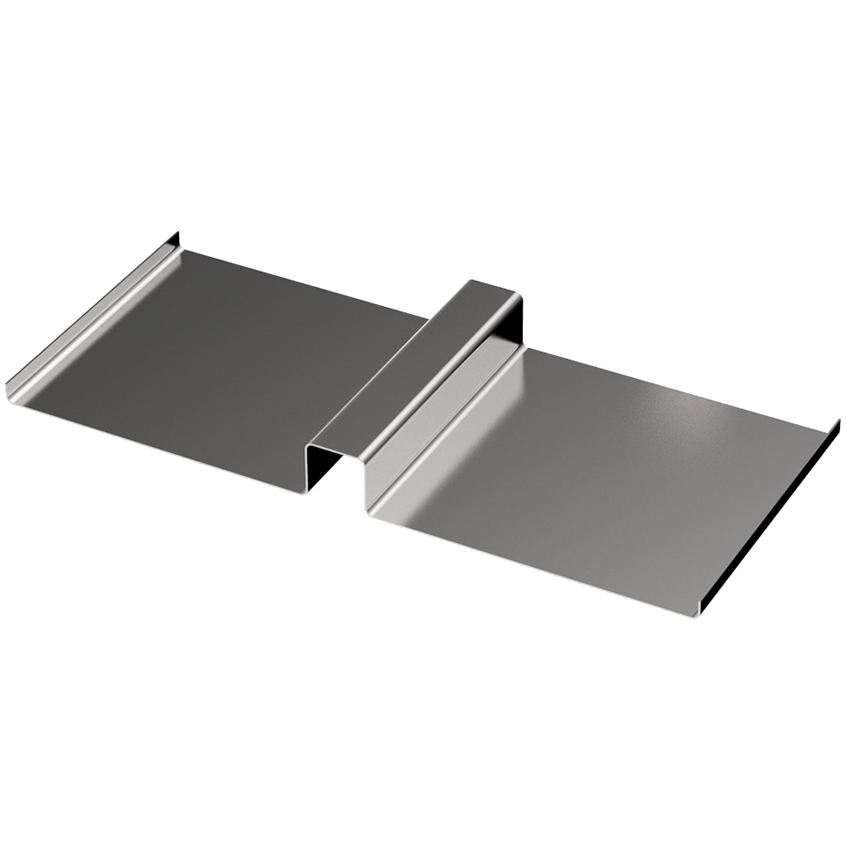

Ballast Plate

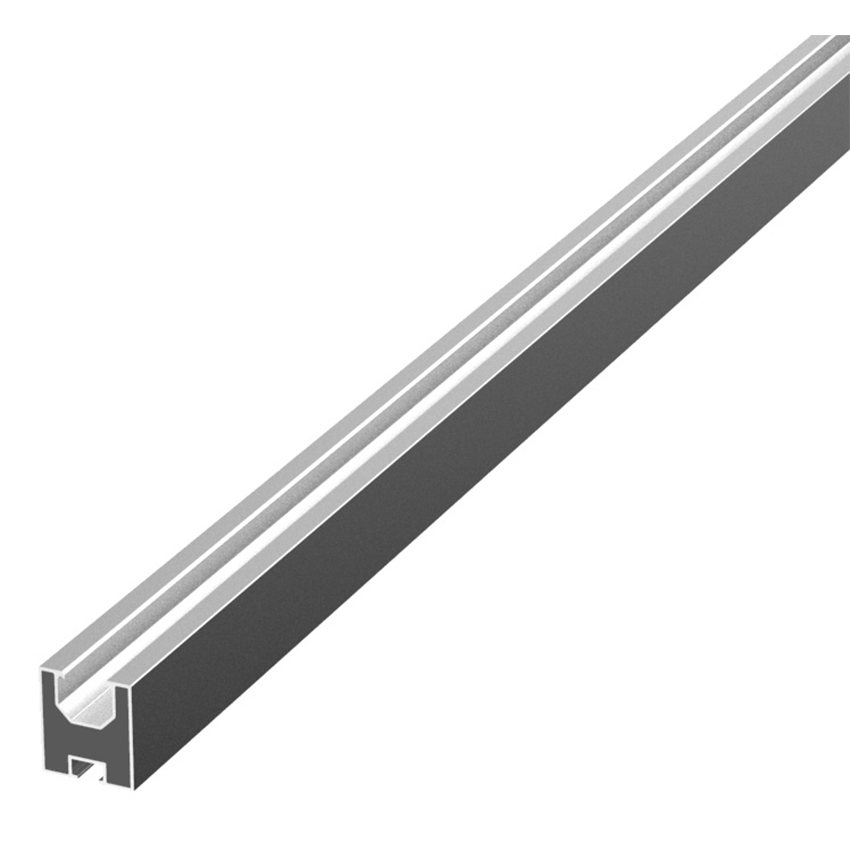

Rail

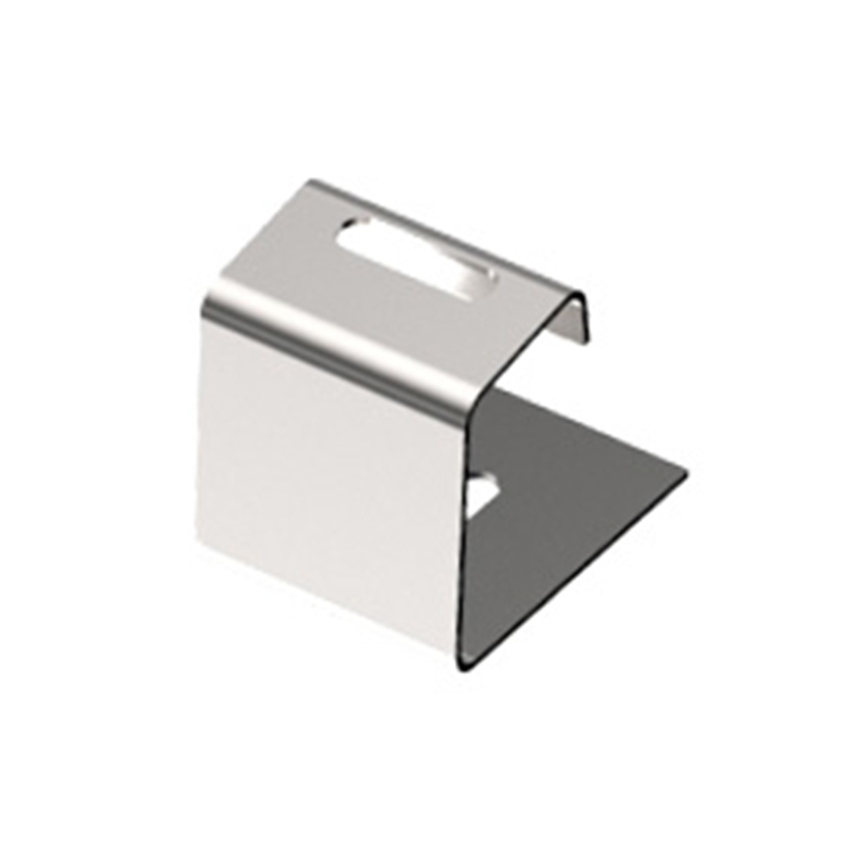

Front Support
Back Support
◊ Installation Steps

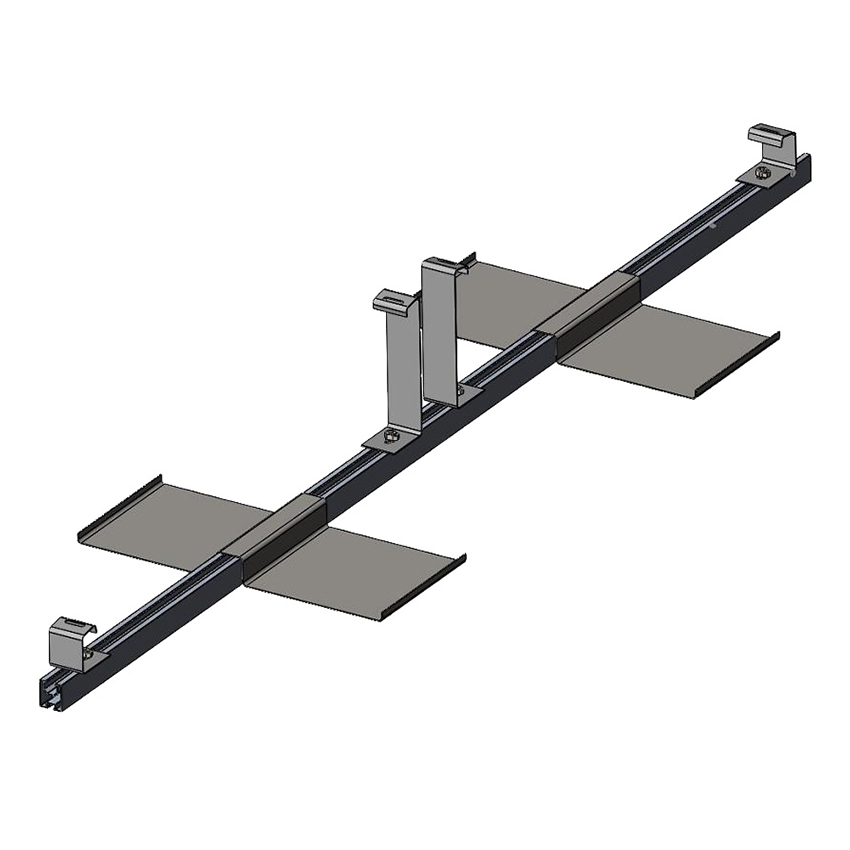

1.Fix the base and ballast plate on the rail

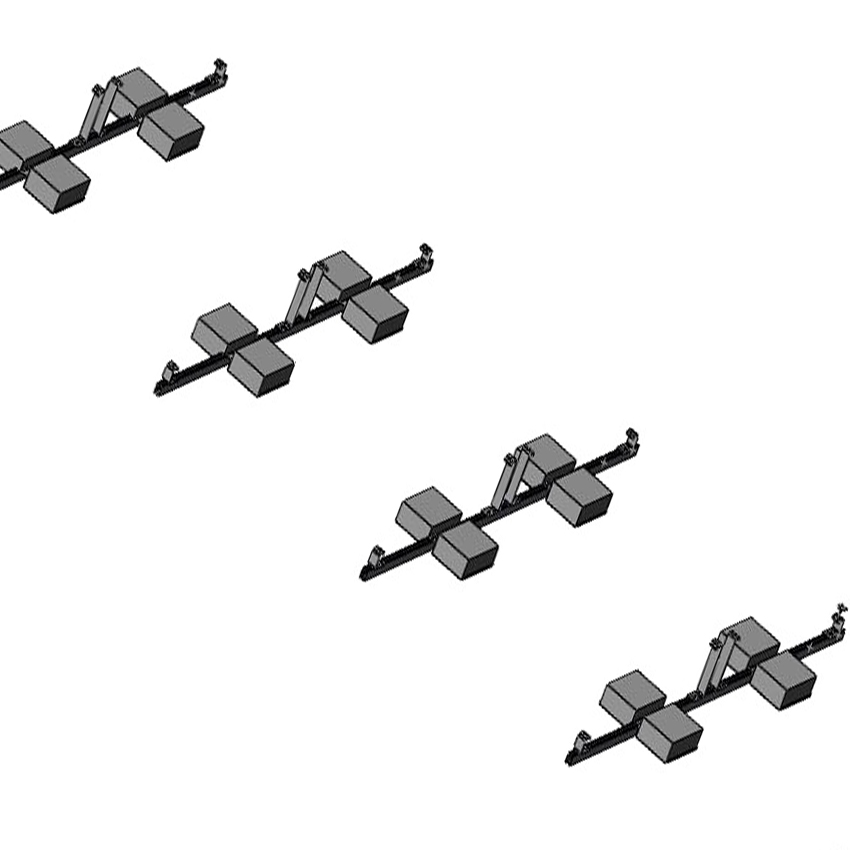

2.Place the concrete block
Fix the module on the rack
