RN-8A Z-shape Ballast Mounting System
- Easy Installation
- Unique martrix design with ballast concrete
- Reliability and Safety

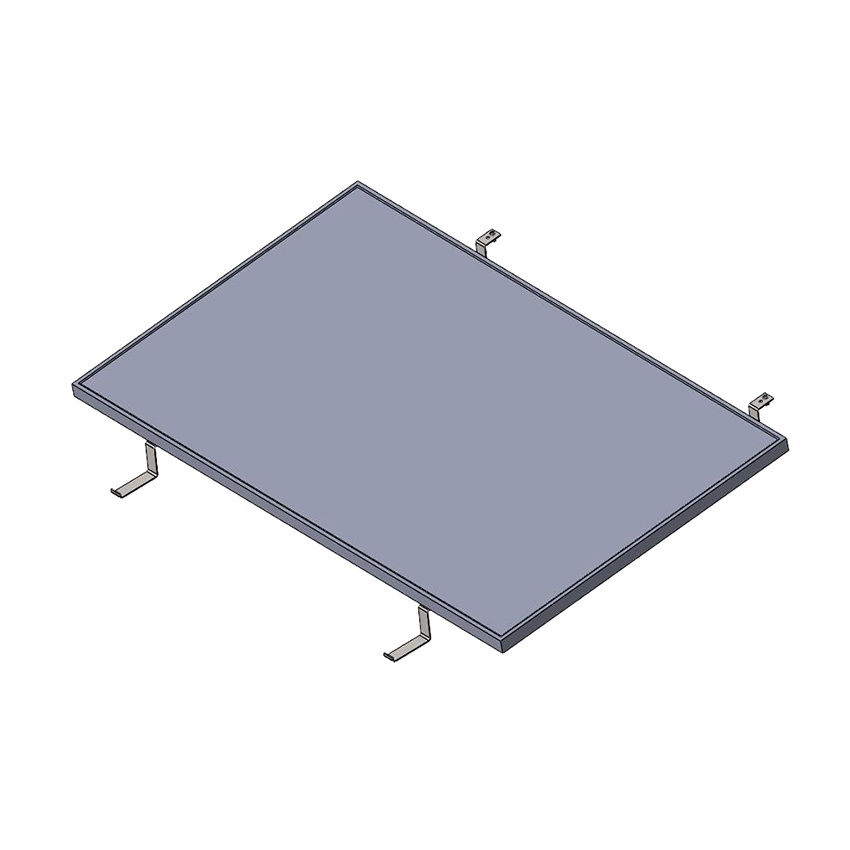

RN-8A Z-shape Ballast Mounting System

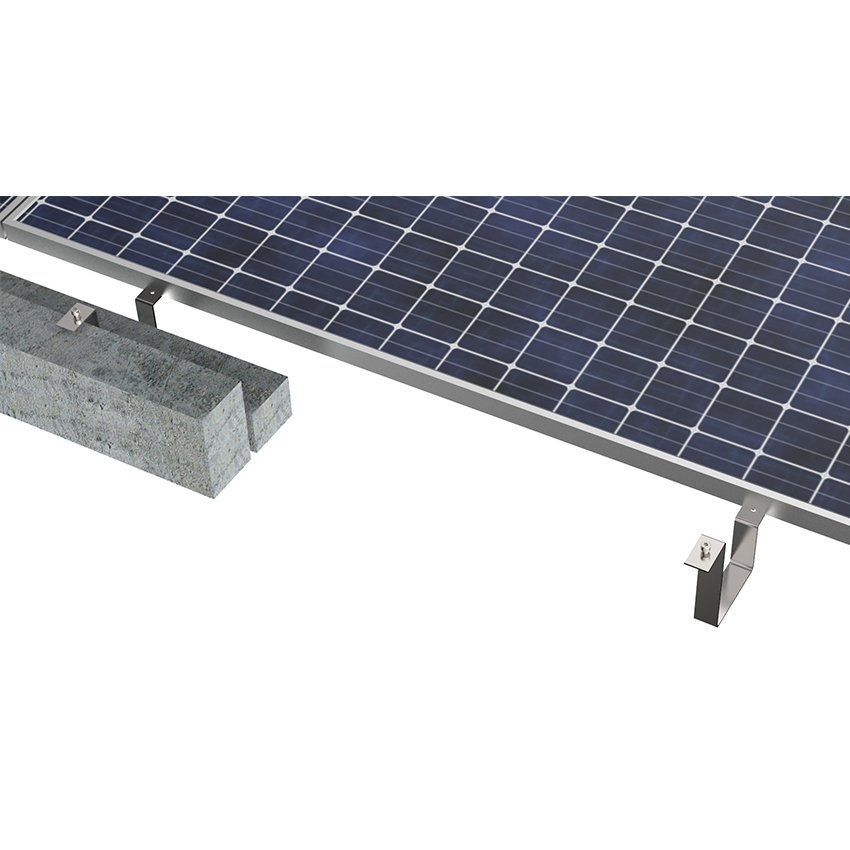

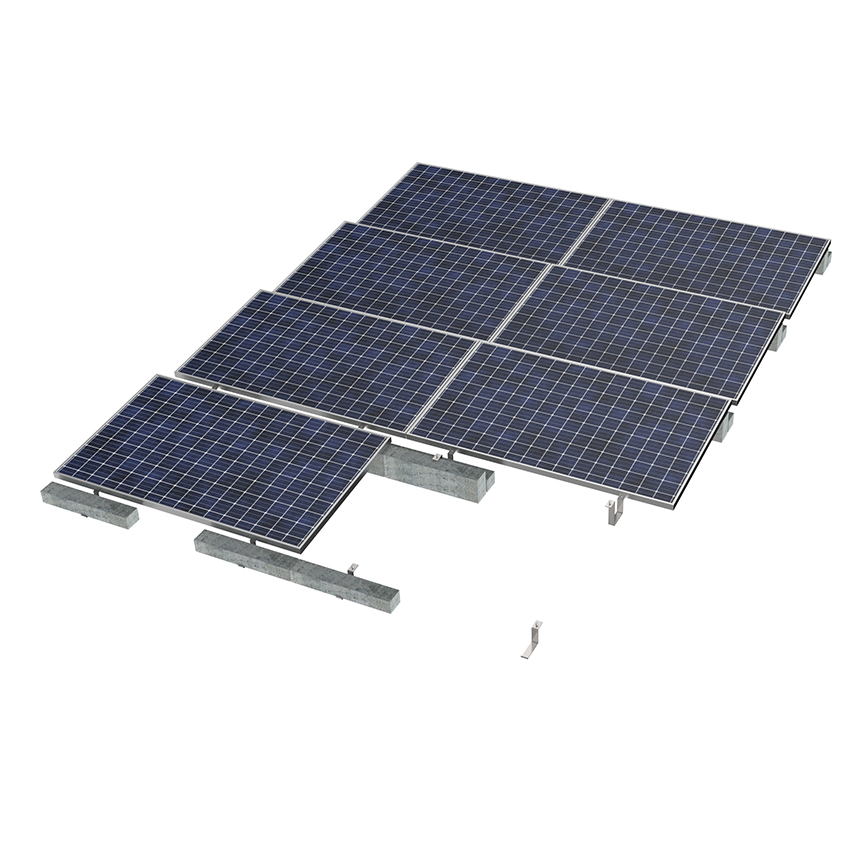

RN-8A Z-Shape Ballast Mounting System is a simply,easy-to -install structure without any penetration. Fast onsite installation with concrete ballast or patented structure design.
◊ Technical Parameter
| Installation site | Flat Roof | Material | SUS304 |
| Tilt Angle | 5,10° | Wind Load | ≦40m/s |
| Foundation | Ballast Concrete | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Landscape | Warranty | 10 Years |
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component

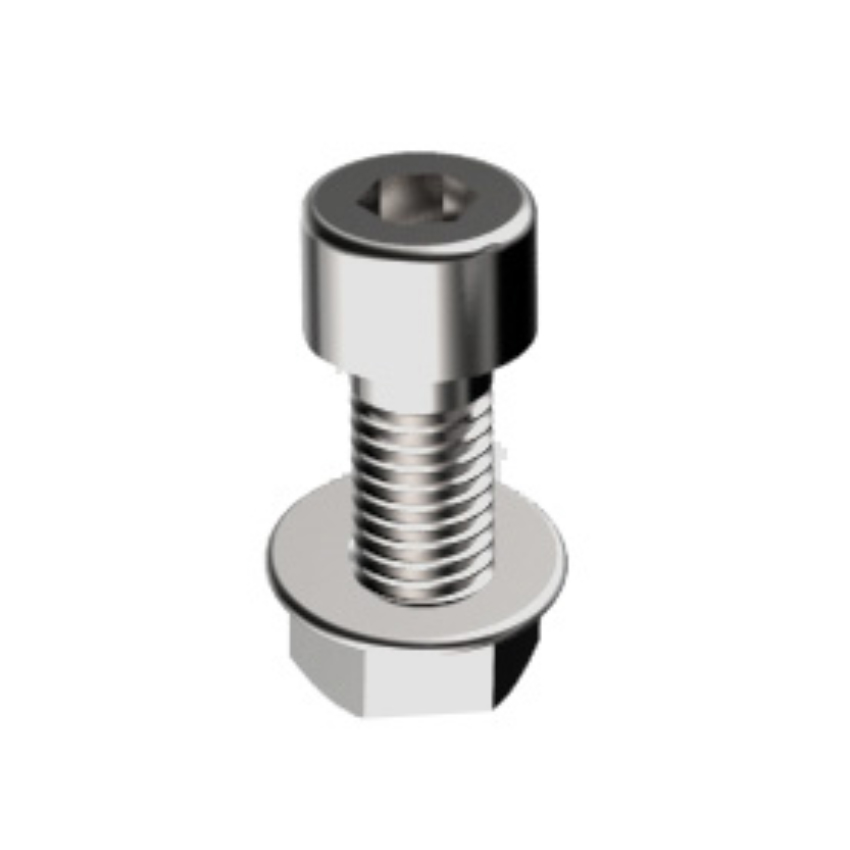

Bolt

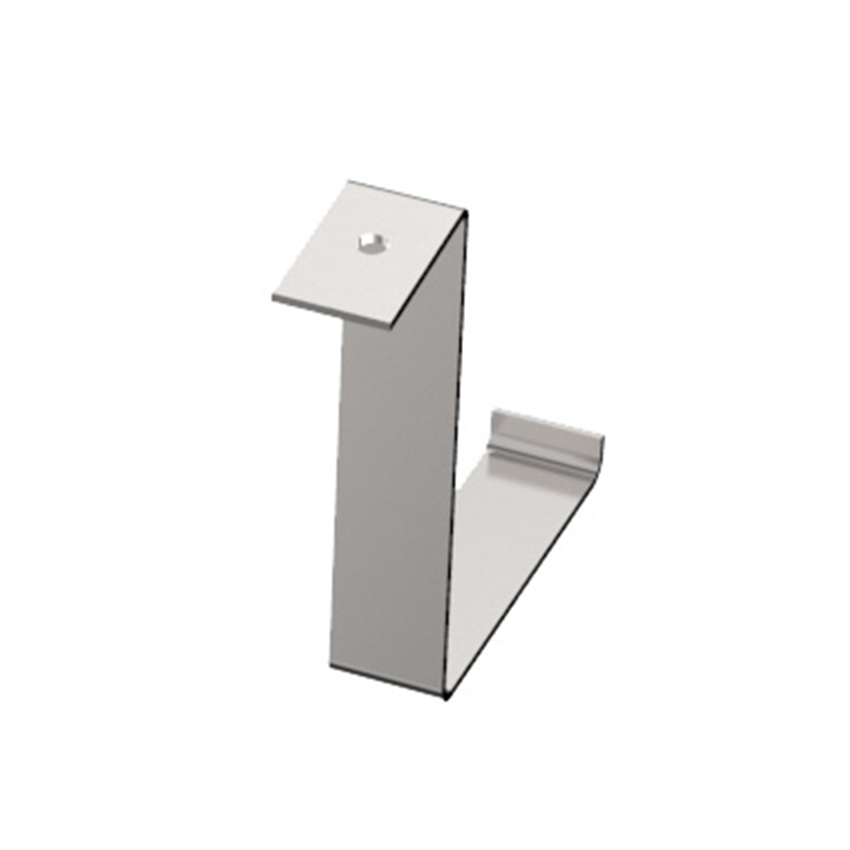

Back Support

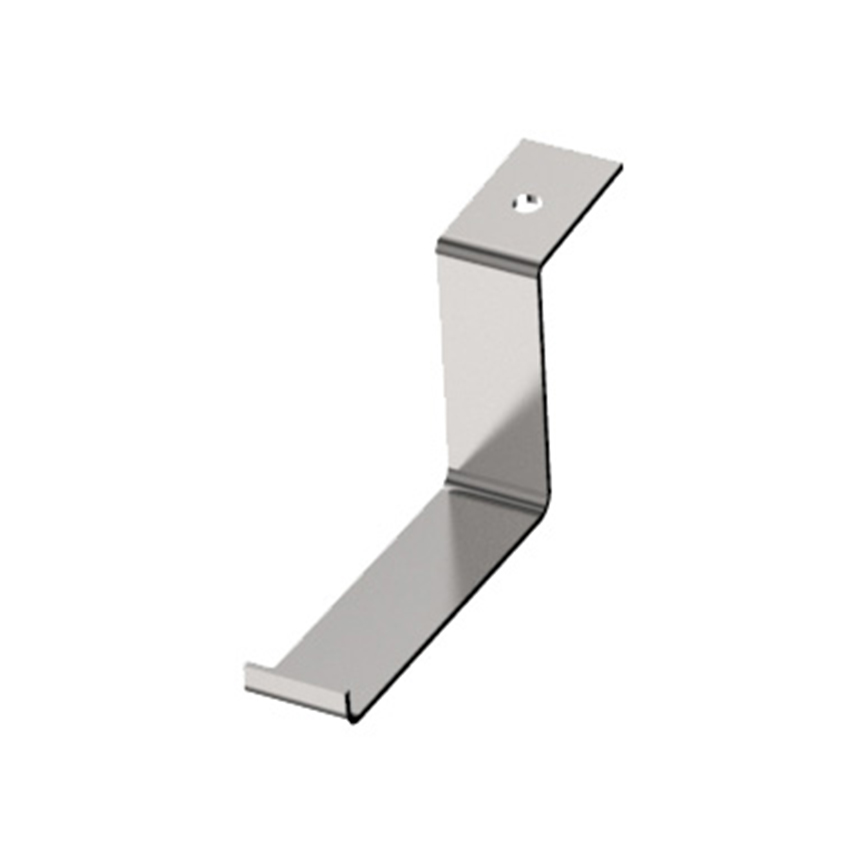

Front Support

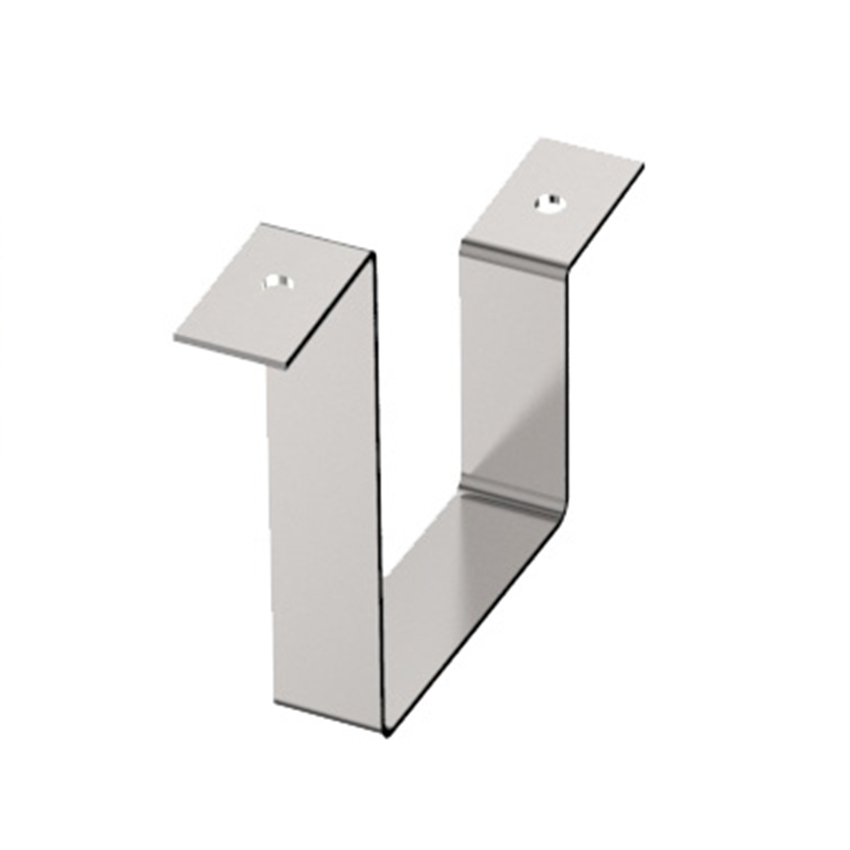

Middle Support
◊ Installation Steps
1. Fix support kit with panel

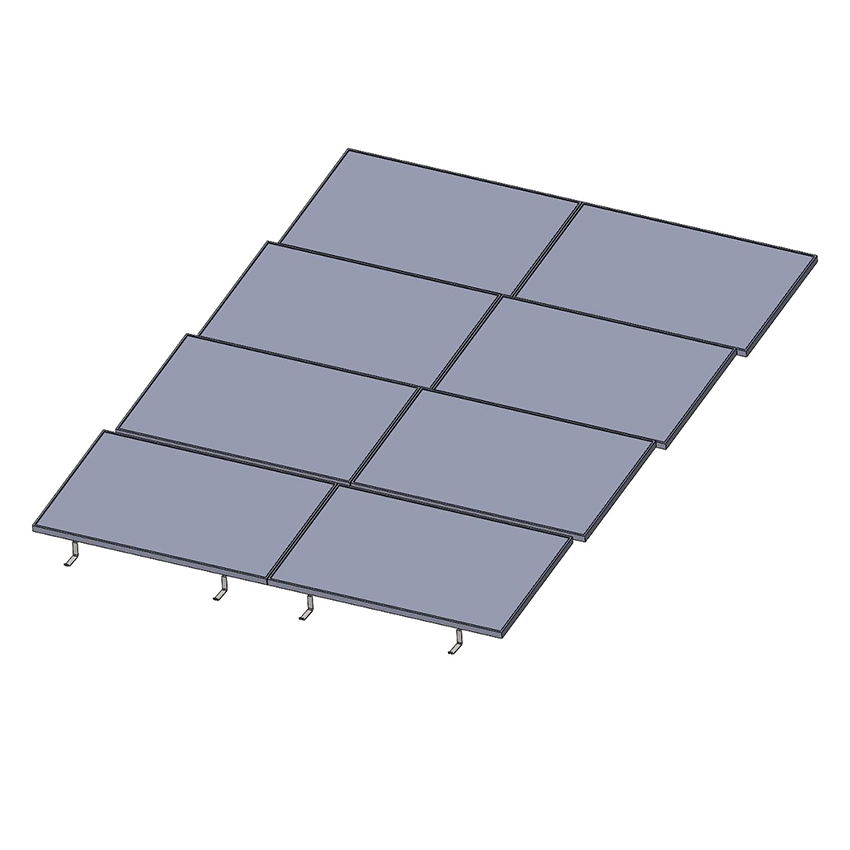

2. Distribute the panels on the roof

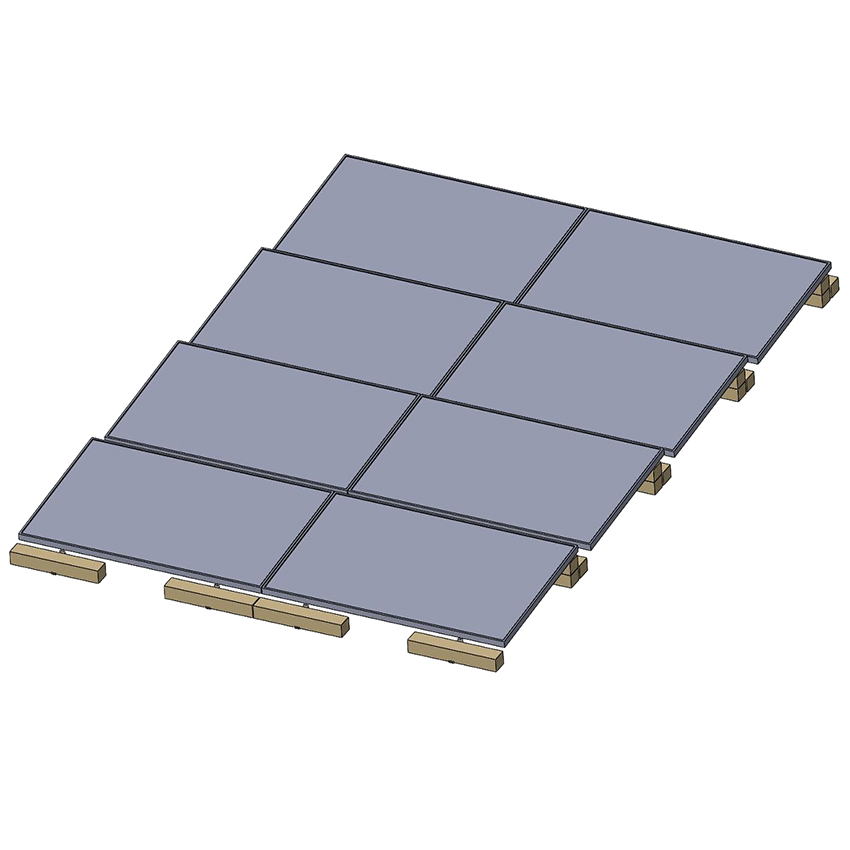

3. Place the concrete block
