RN-7-SW-2 Trapezoidal Metal Roof Mounting System
- Various types of clamps suitable for different sizes of trapezoidal metal roof
- Economic and Practical
- Reliability and Safety

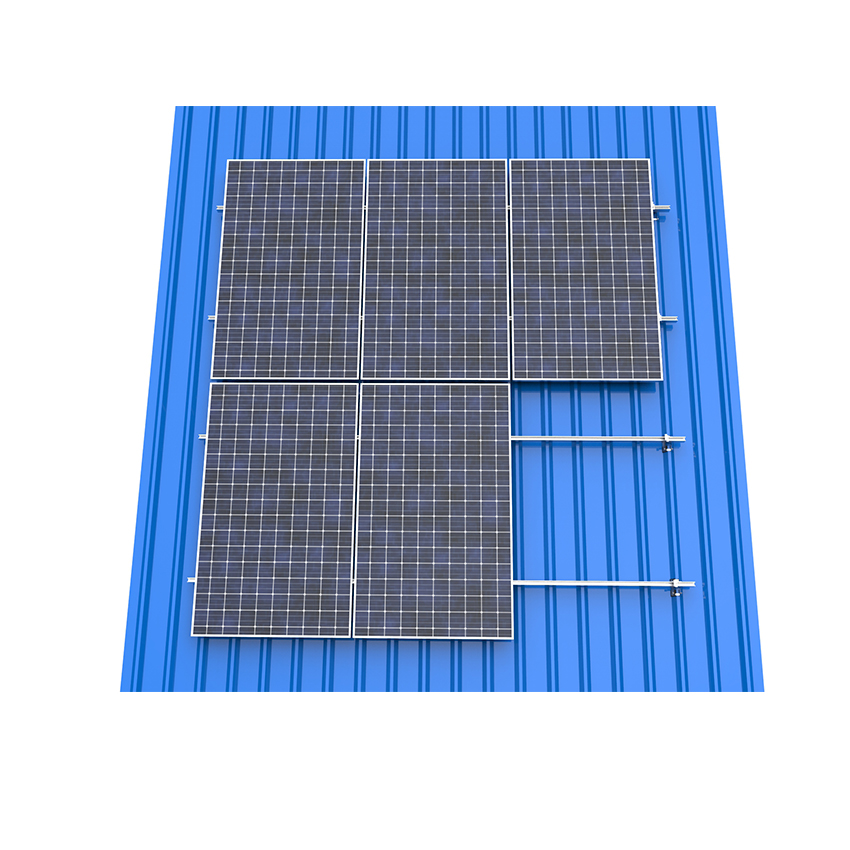

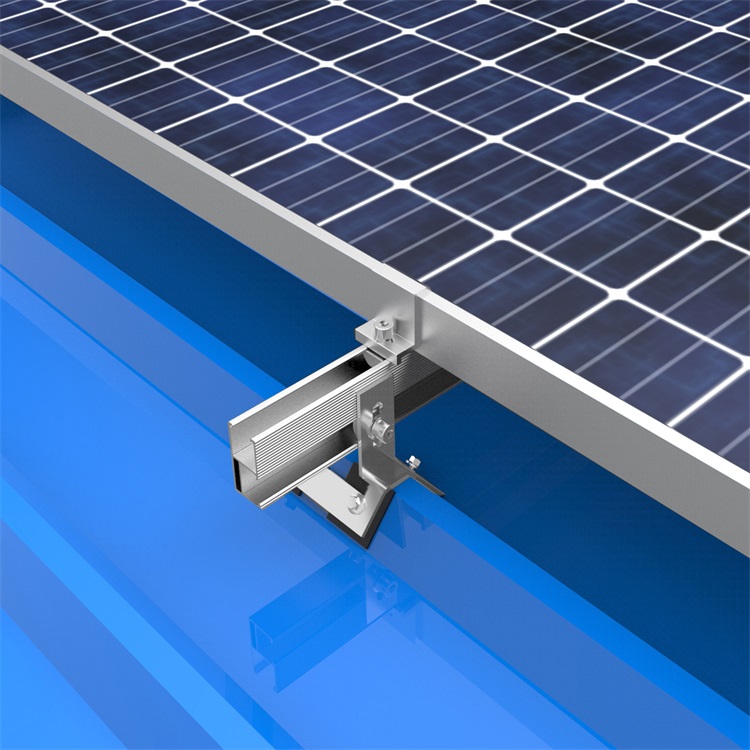

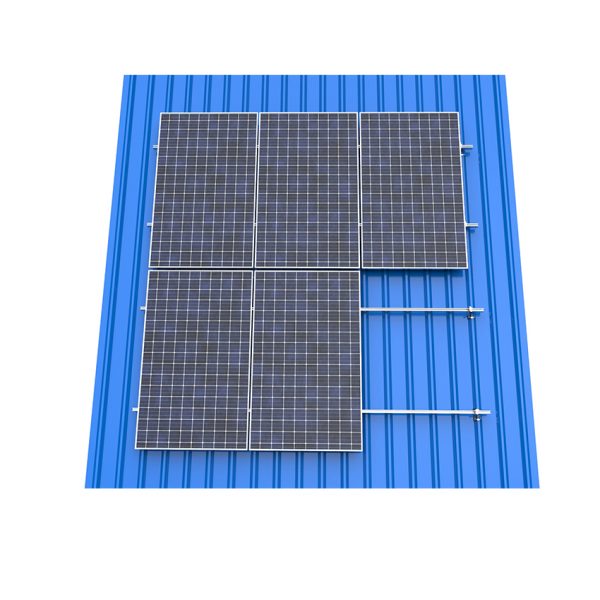

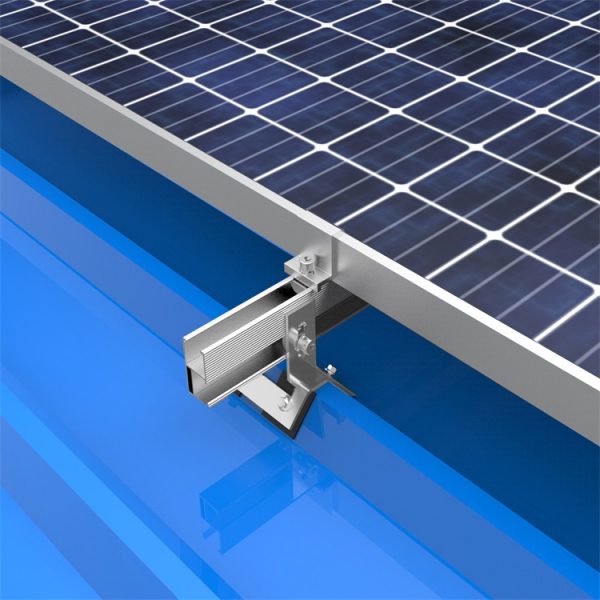

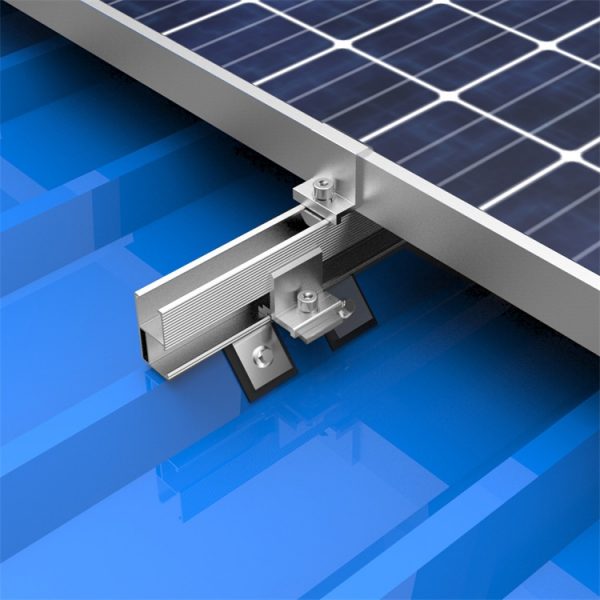

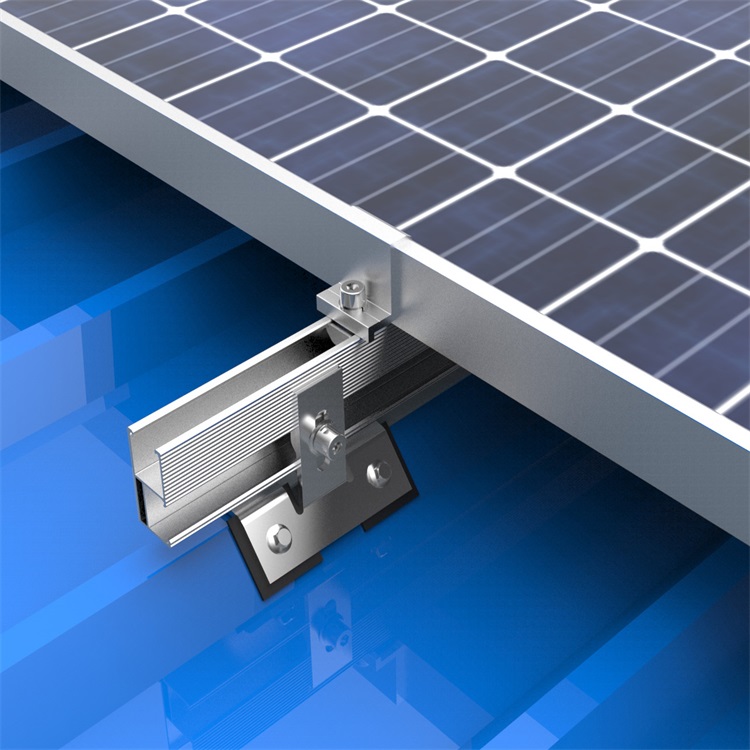

RN-7-SW-2 Trapezoidal Metal Roof Mounting System
RN-7-SW-2 Trapezoidal Metal Roof Mounting System is widely apply in residential and commercial trapezoidal metal roof solar projects.
◊ Technical Parameter
| Installation site | Metal Roof | Material | SUS304/AL6005-T5 |
| Tilt Angle | Parallel to exsting roof | Wind Load | ≦60m/s |
| Roof Type | Trapezoidal | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Landscape | Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component
RN7-SW-2-A002
RN7-SW-2-A002
RN7-SW-2-A003
RN7-SW-2-A004
T-nut
Screw
Rubber Pad
Rail Connector

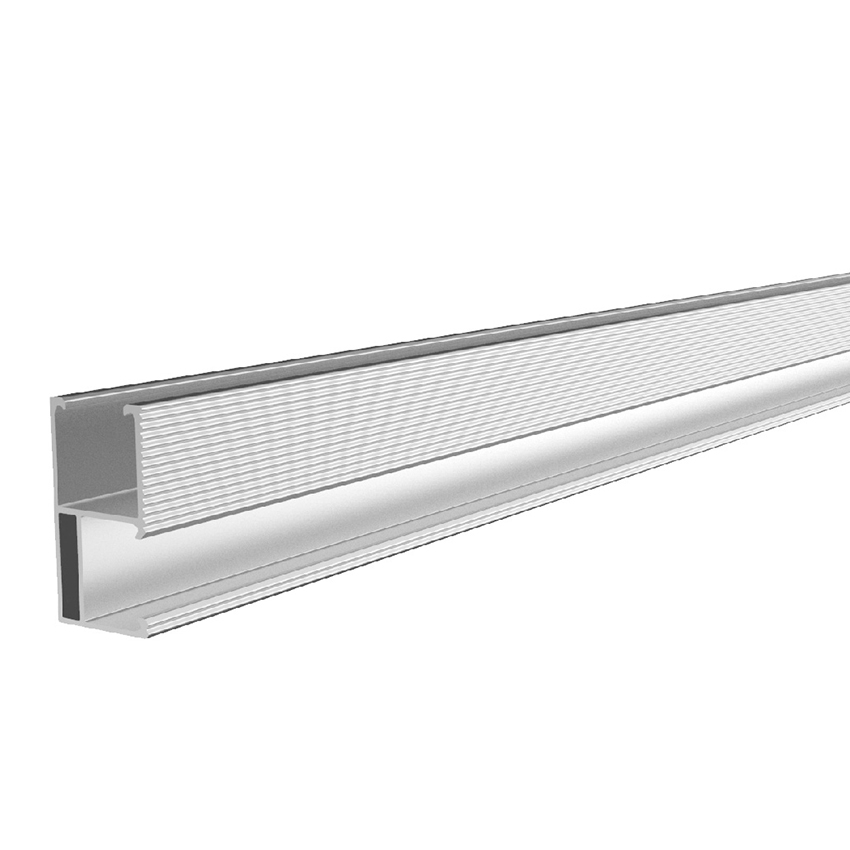

Rail
End Clamp
Mid Clamp

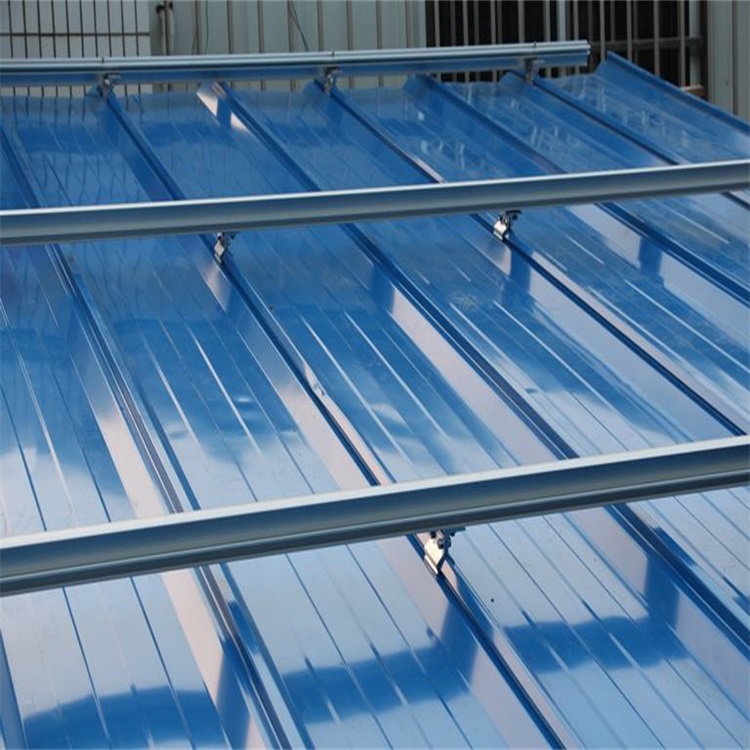

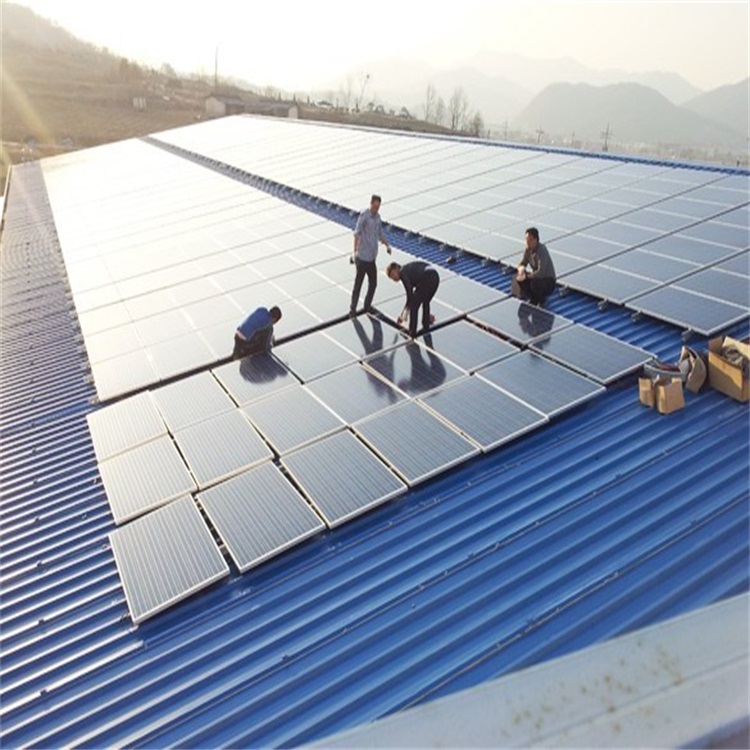

◊ Project Case
