RN-7-SW-1 Railless Roof Mounting System
- Easy Installation
- Lightweight less load to the roof
- Applicable for various roof types
RN-7-SW-1 Railless Roof Mounting System

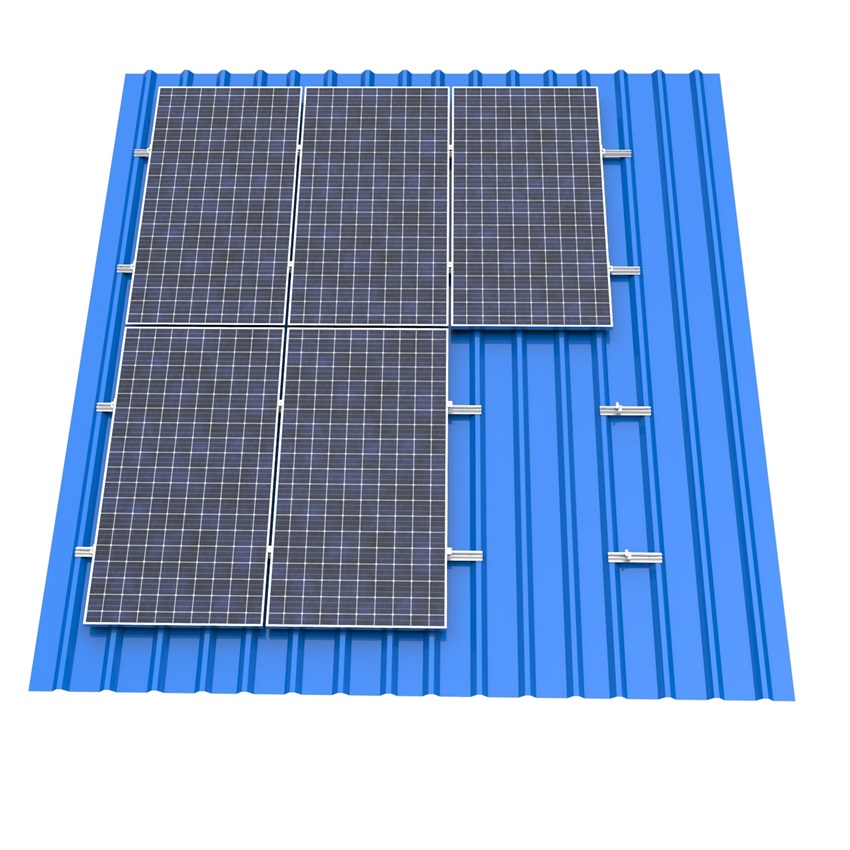

RN-7-SW-1 Railless Roof Mounting System is mainly for trapezoidal metal roof projects,modules are fixed directly on the rail,the pre-glued EPDM rubber pad on the profile prevent leakage. Lightweight and compact structure make it easy for transportation and stroage.
◊ Technical Parameter
| Installation site | Slope Roof | Material | AL6005-T5/SUS304 |
| Tilt Angle | Parallel to exsting roof | Wind Load | ≦60m/s |

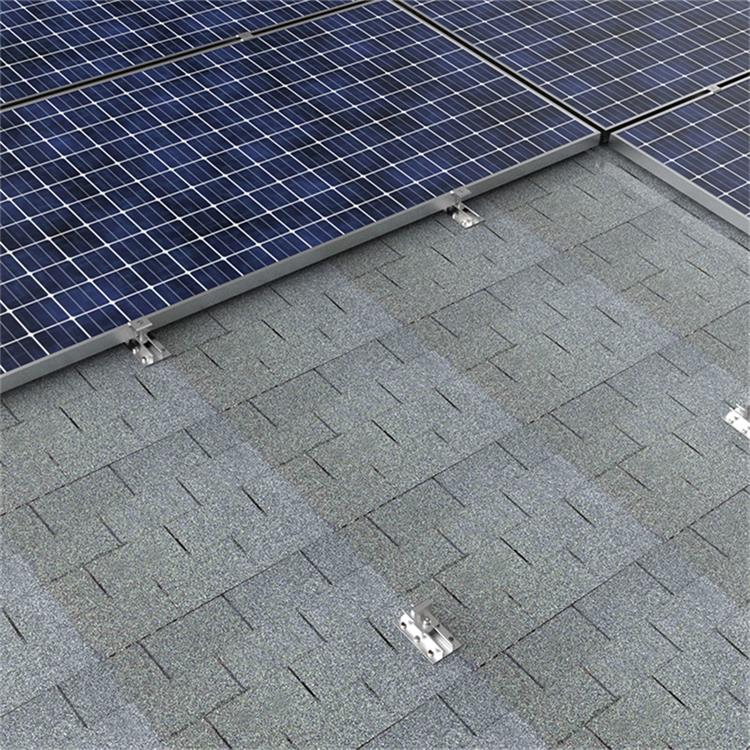

| Roof type | Trapezoidal , Asphalt or concrete slope roofs | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Design Standard | AS/NZ 1170,JIS C8955 2017,DIN 1055 ,IBC 2006 |
◊ Component

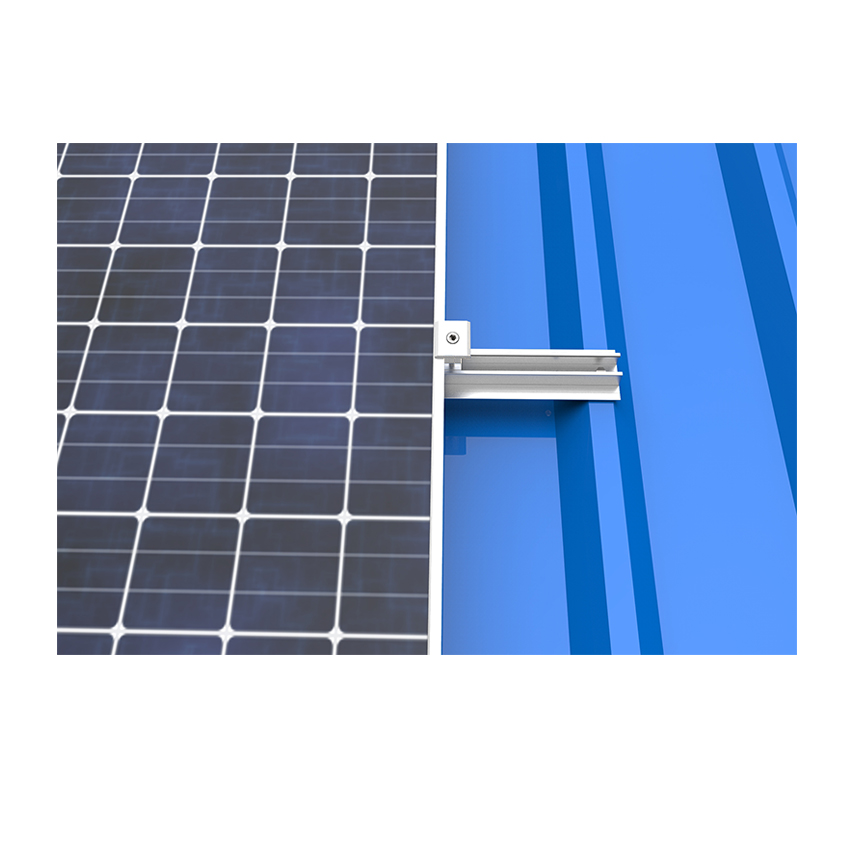

End Clamp
Mid Clamp

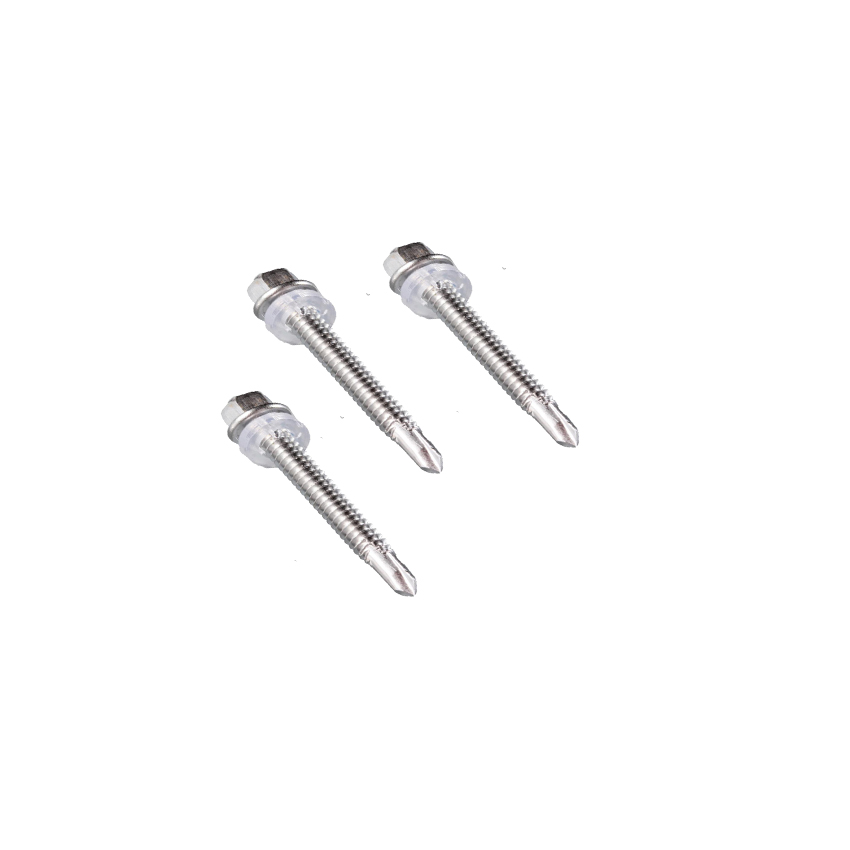

Screw

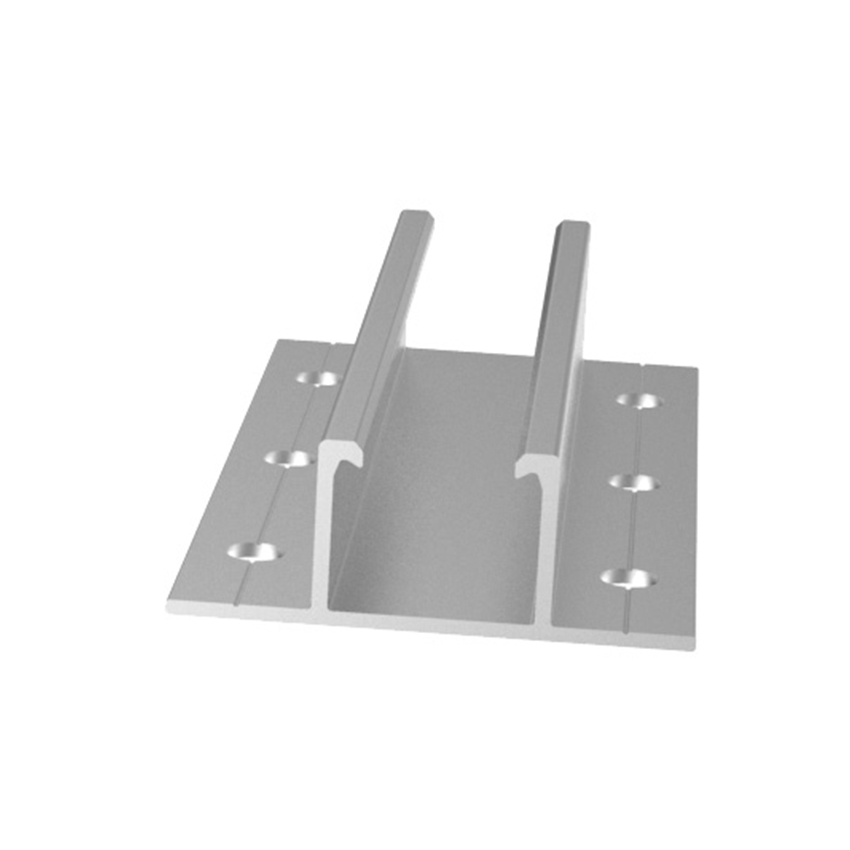

RN7-SW-1-B001

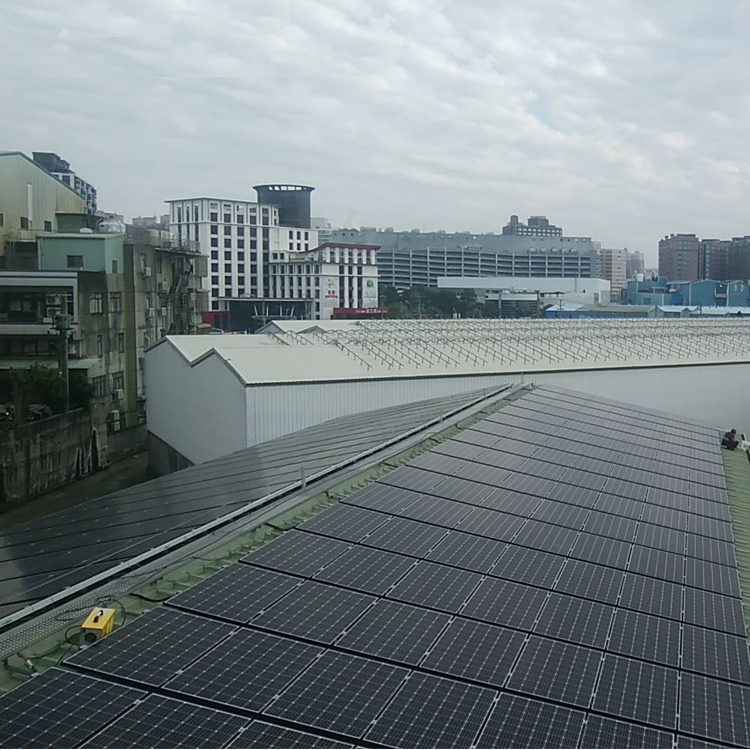

◊ Project Case
