RN-5A Roof Tripod Mounting System
- Easy Installation
- Variours application types.
- Reliability and Safety

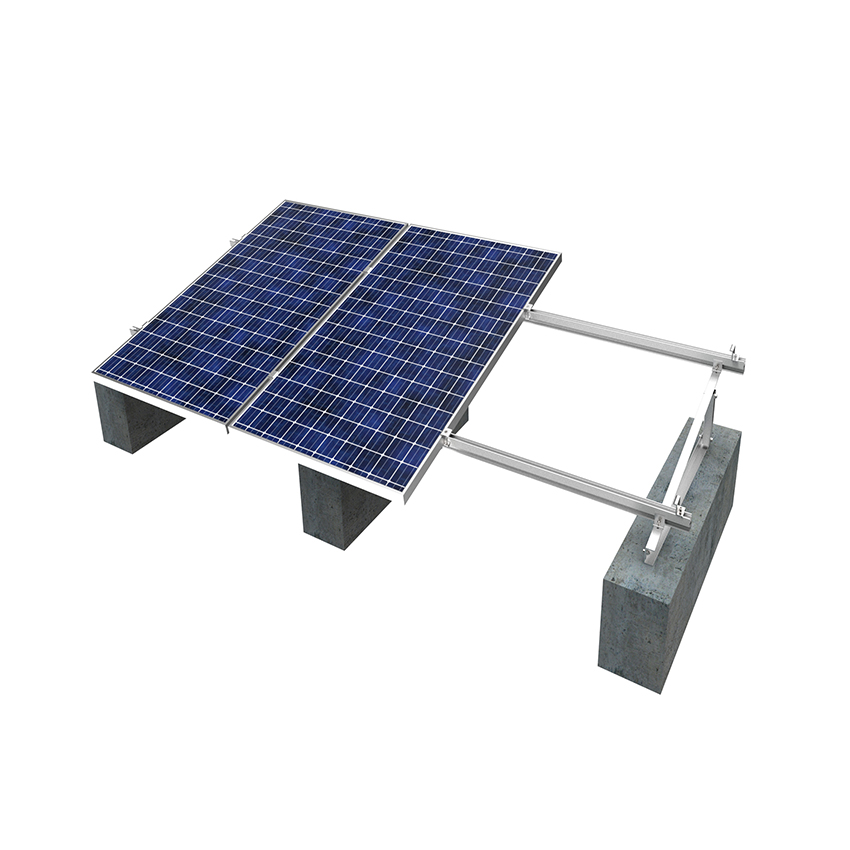

RN-5A Roof Tripod Mounting System
RN-5A Tripod Mounting System is a optimized structure,deisgn pursues simplicity,praticability and convenience,support angle adjustment from 5-60°
◊Technical Parameter

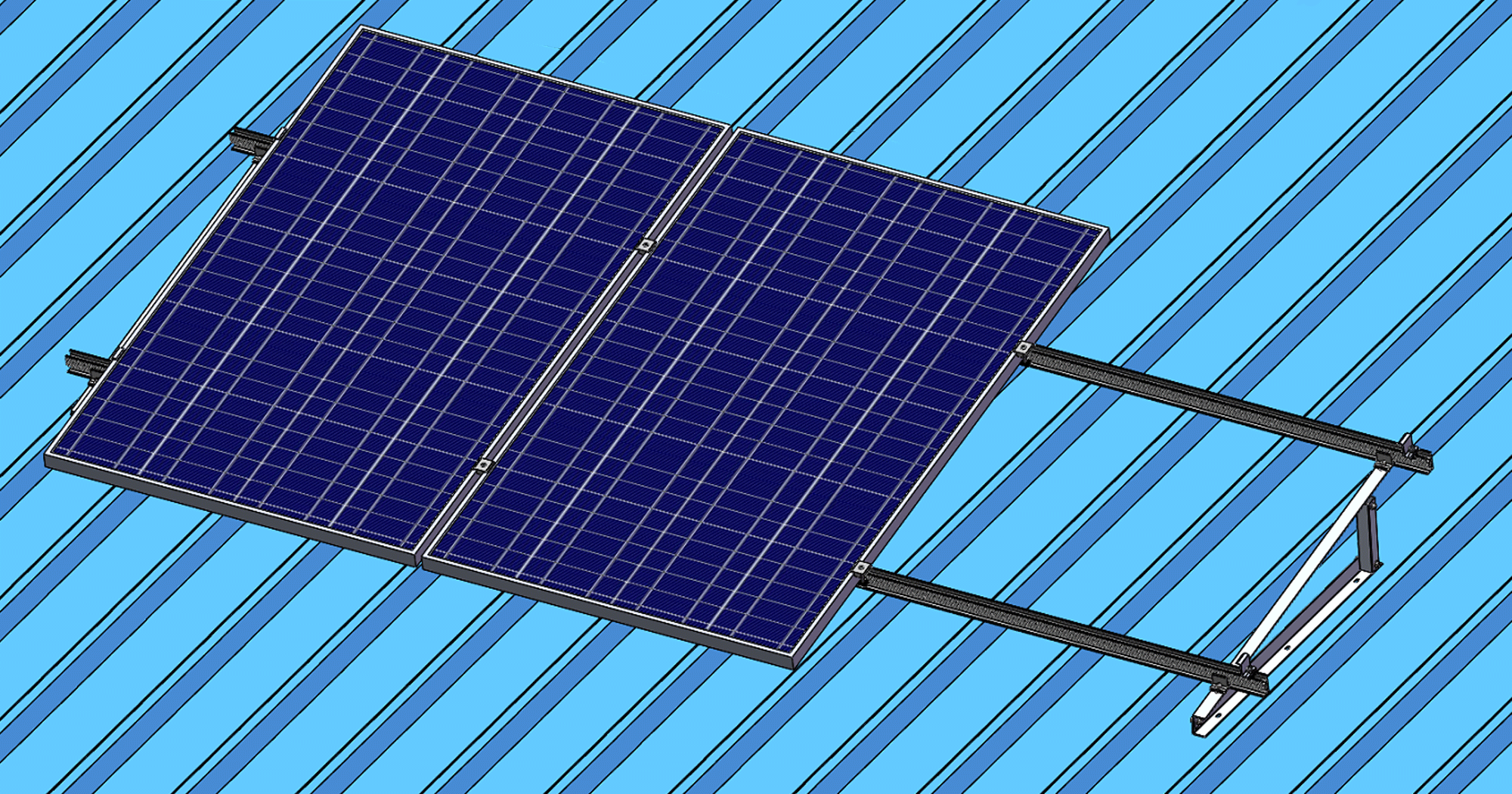

| Installation site | Flat Roof/Metal Roof | Material | SUS304 |
| Tilt Angle | 5-60° | Wind Load | ≦60m/s |

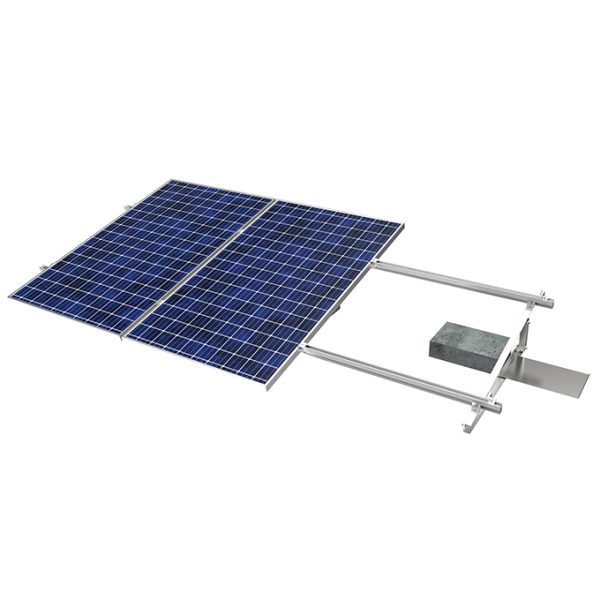

| Foundation | Ballast Concrete/Expension Bolt | Snow Load | ≦1.5KN/㎡ |
| Module Orientation | Portrait | Warranty | 10 Years |
| Landscape | Design Standard | AS/NZ 1170,JIS C8955 2017,DIN1055,IBC2006 |
◊ Component
End Clamp
Mid Clamp
Rail Connector

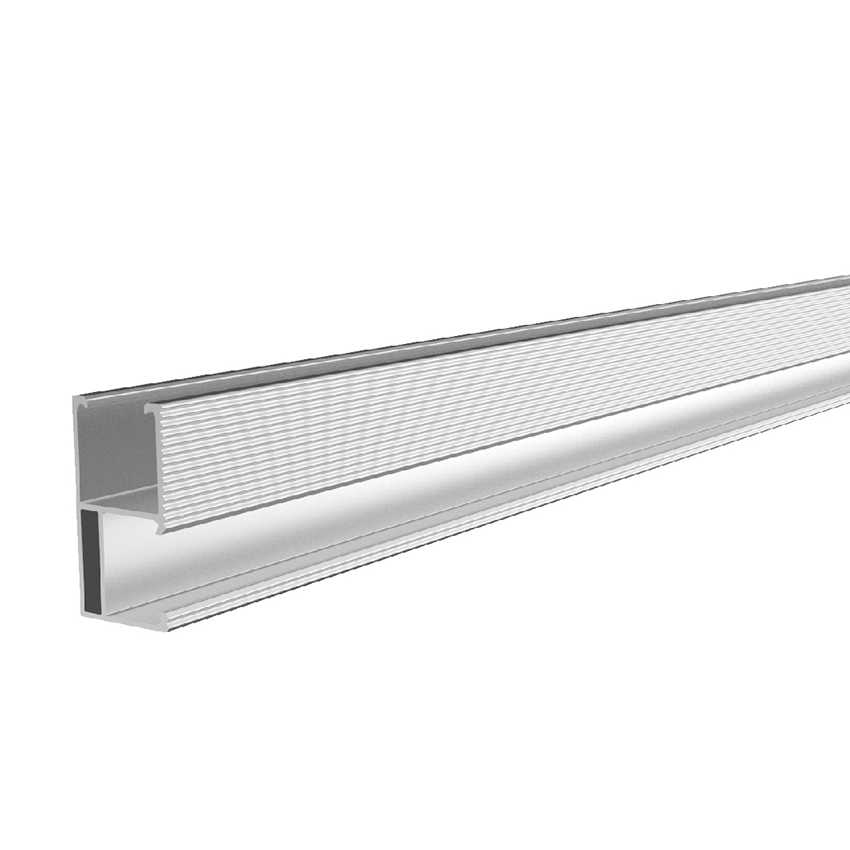

Rail-B

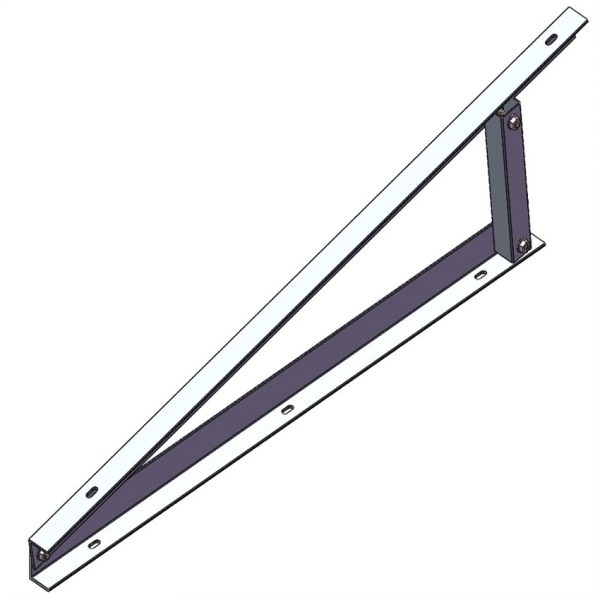

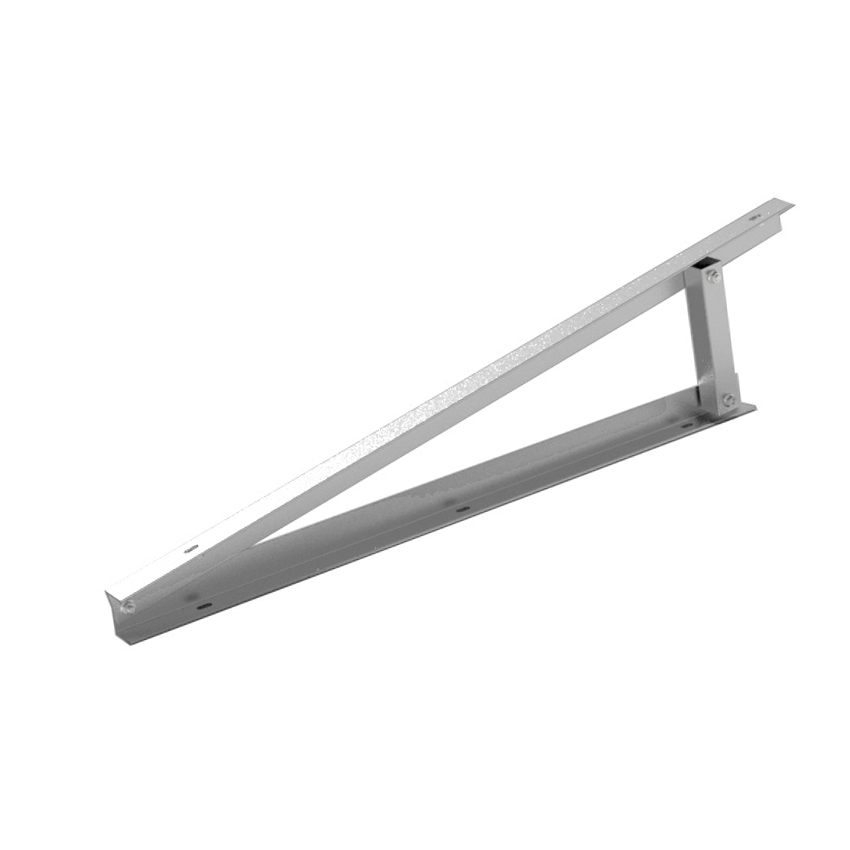

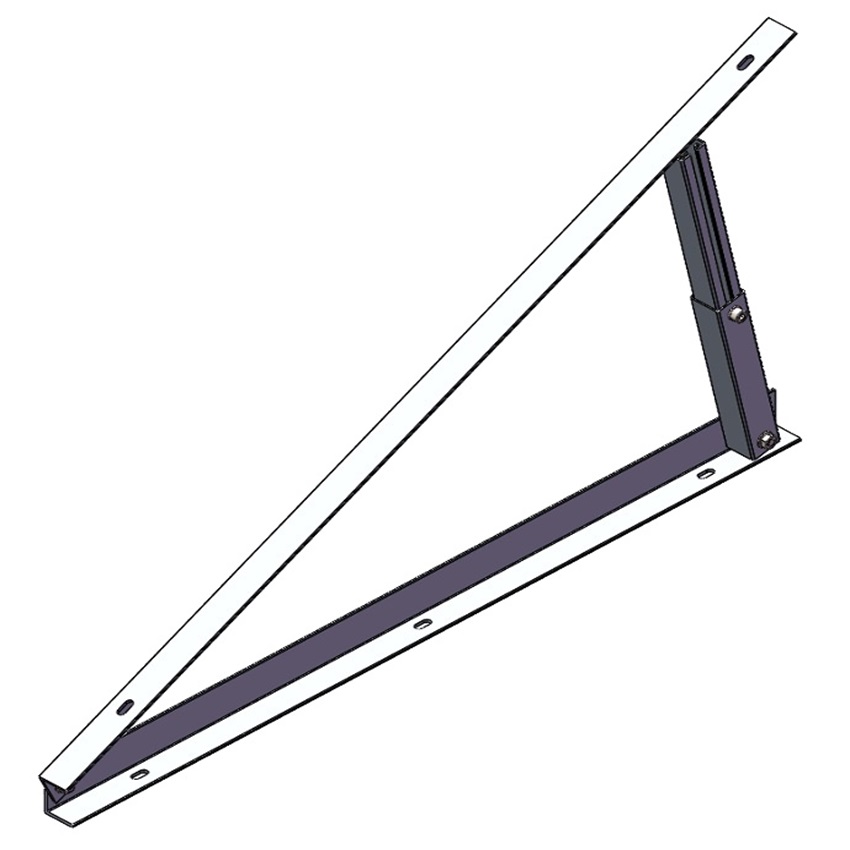

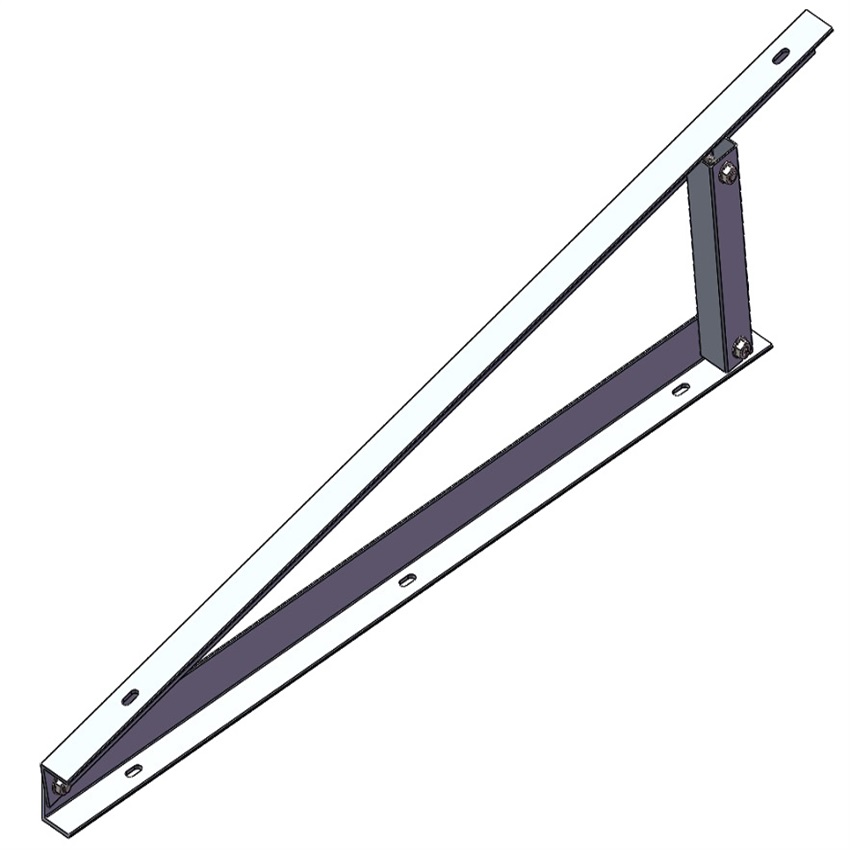

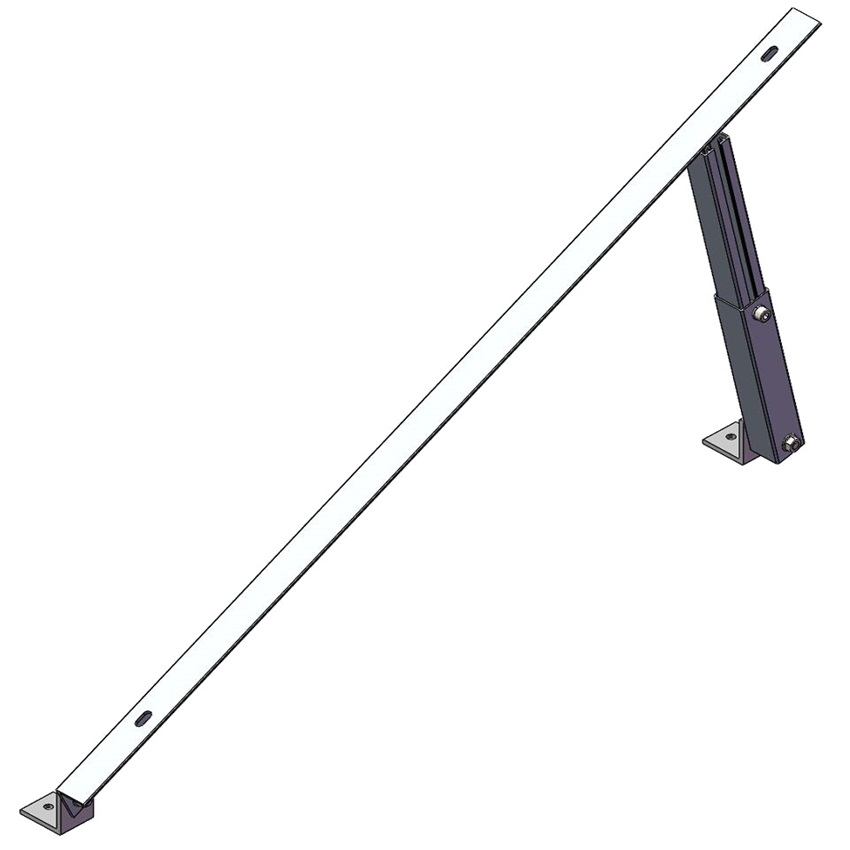

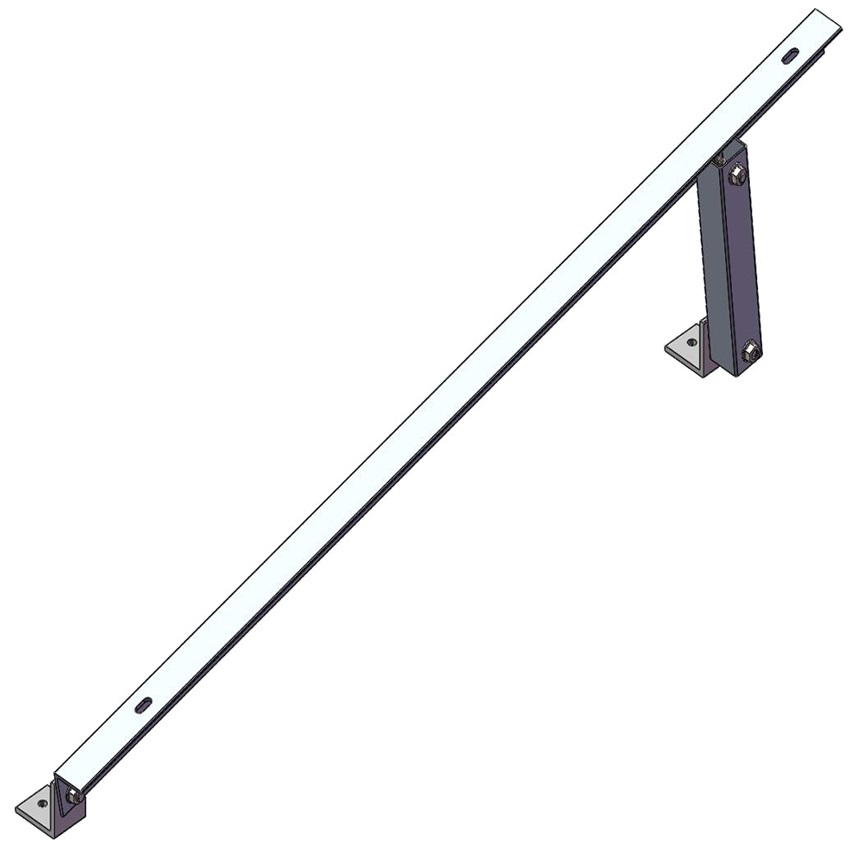

Tripod A

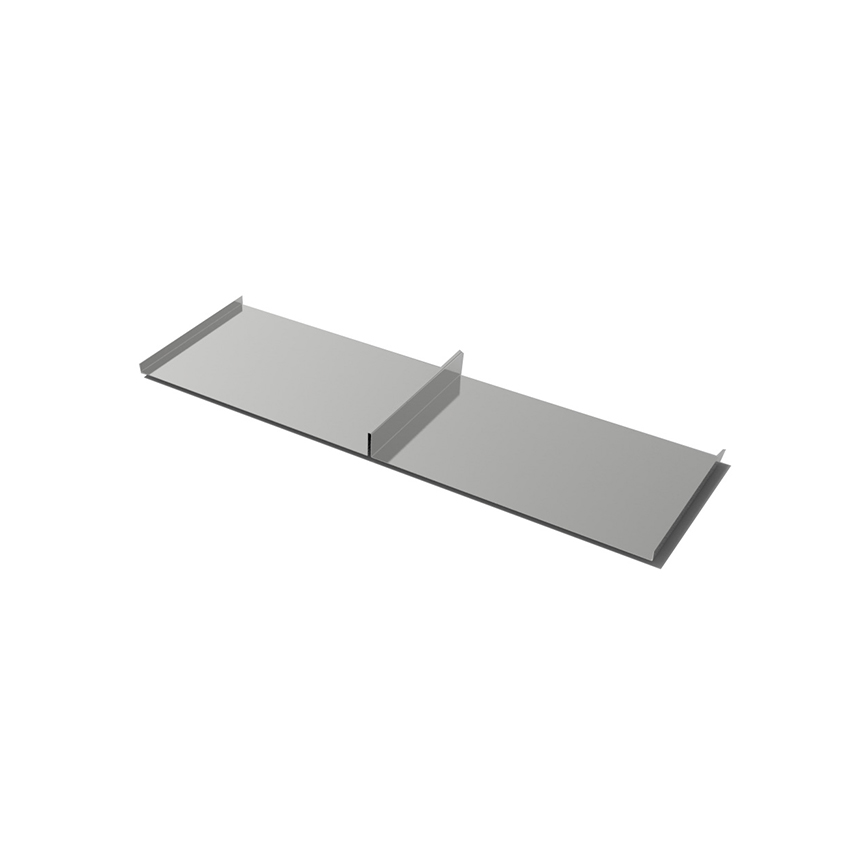

Ballast Plate

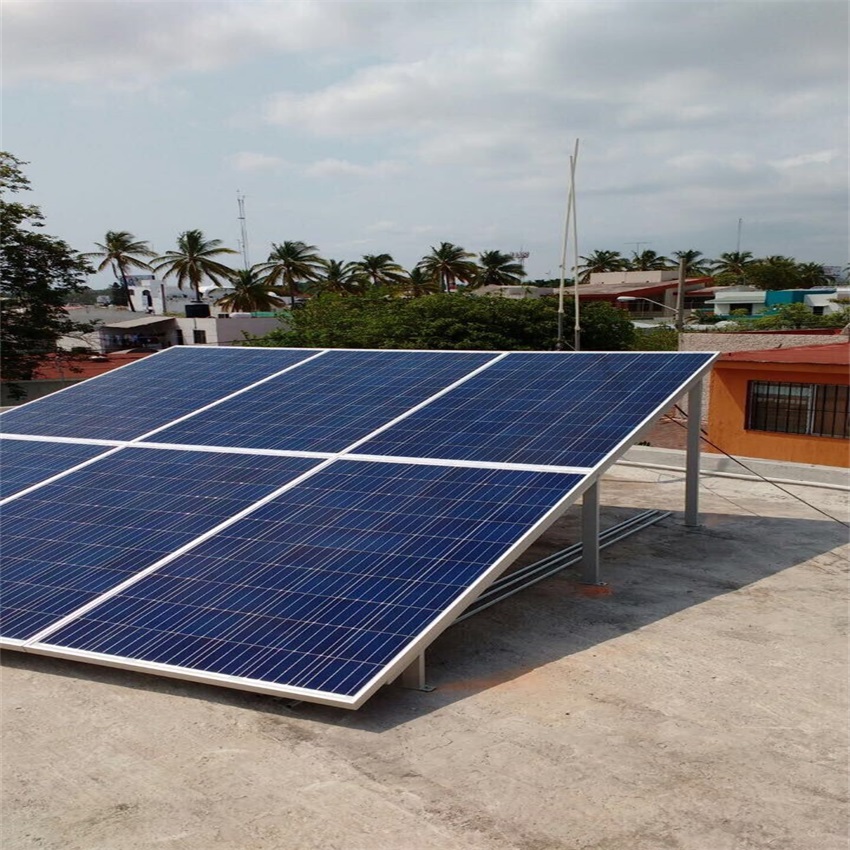

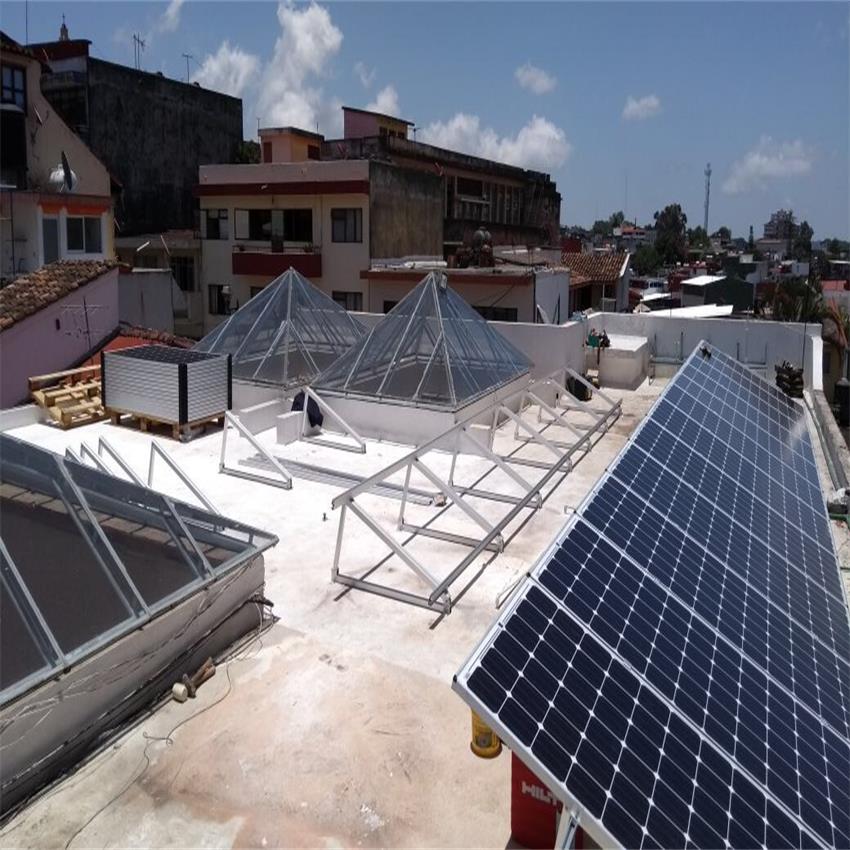

◊ Project Case
